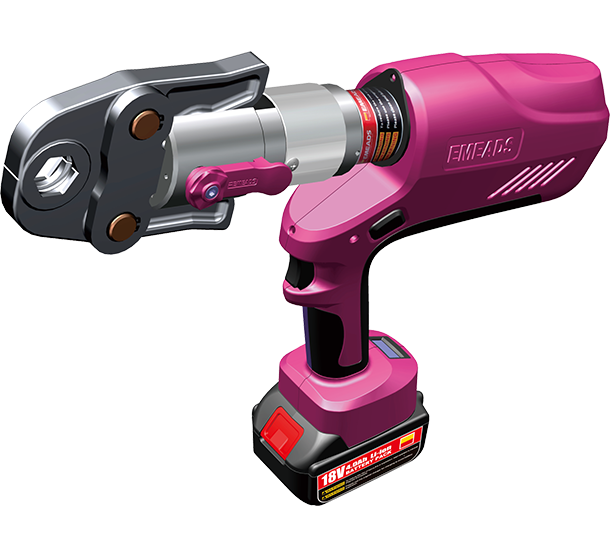

EMEADS EB-1525 Charging Type Hydraulic Clamping Tool (12-35mm, 19KN)

Compression range: 12-28mm (1/2"-1") thill-wall stainless Steel pipe

12-35mm (1/2"-1") thin-wall copper tube

12-32mm Plastic pipe, aluminum plastic composite pipe

Note: different pipe type and material, compression range will change, should be based on the specific supporting pipe

Rated output: 19KN (Piston output)

Stroke: 30mm

Time consumption of single clamping: 2.5-4s (According to the diameter of the pipe fitting)

standard battery: 18V/4.0Ah lithium battery

Standard charger: AC100V-240V 50—60HZ

Battery charging time: About 2 hours

Maintenance cycle: 30000times

Number of stuck voltage per saturated battery: 180times

Weight: 2.4kg (tool with battery)

3.9kg (tool with battery and a pair of calipers)

Tool dimensions: 300x286x75mm

ACCESSORIES:

Battery: 2 pieces

Charger: 1 piece

Mold configuration: 15, 20, 25mm

Datasheet
