Step-by-Step Guide to Using a Bias Tee Effectively

Have you heard of a bias tee but aren’t quite sure how to use it? This article will give you a detailed understanding of the device and guide you through each step of proper operation. By following these instructions, you can minimize risks, ensure accuracy, and maintain efficiency—especially when using measuring equipment at EMIN.

What is a Bias Tee and Why Use It Correctly?

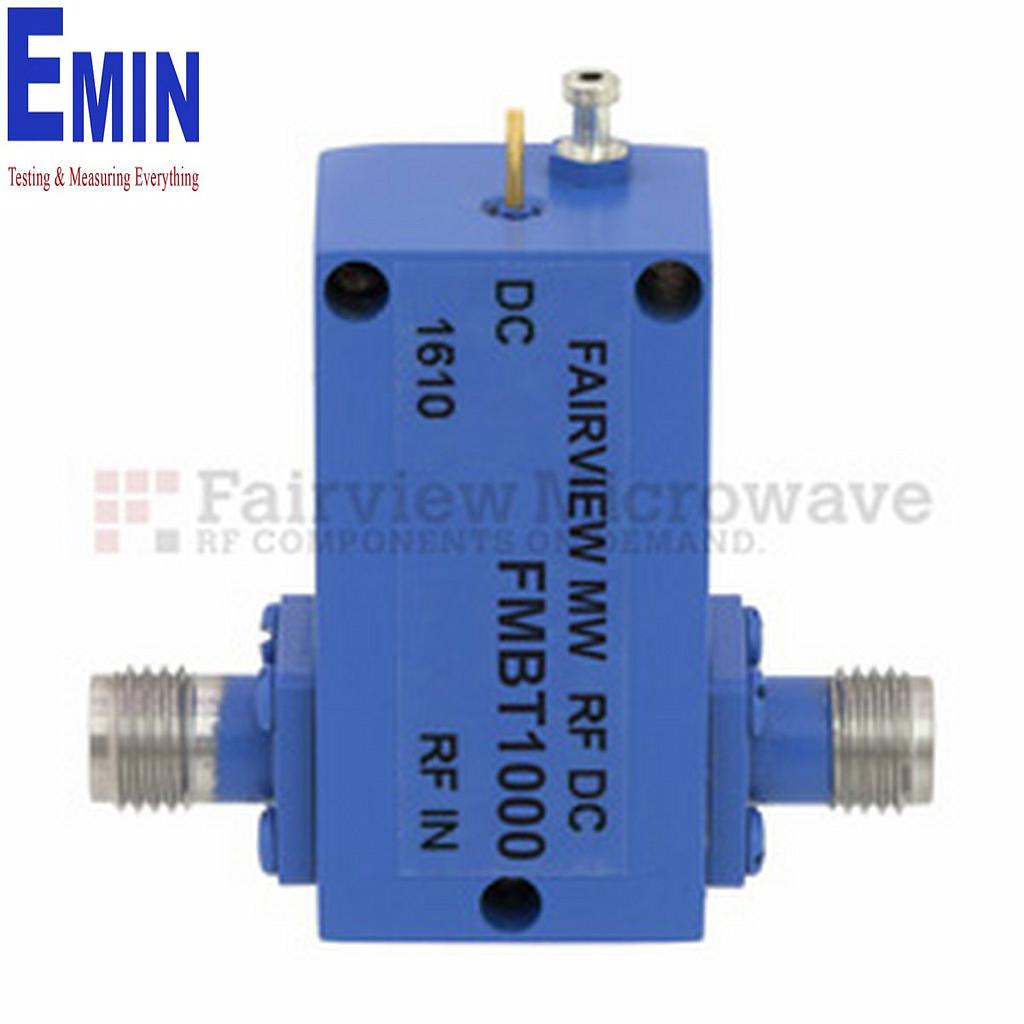

A bias tee is an electronic component that allows the combination or separation of direct current (DC) and high-frequency alternating current (RF) signals on a single transmission line. In other words, it enables DC power to be injected into an RF signal path, or removes the DC portion from the signal, without causing interference or distortion.

Thanks to this capability, bias tees are widely used in electronic systems, telecommunications, and measurement applications. Proper usage not only protects equipment but also ensures the accuracy of measurements.

Steps to Using a Bias Tee

Step 1: Prepare and check specifications

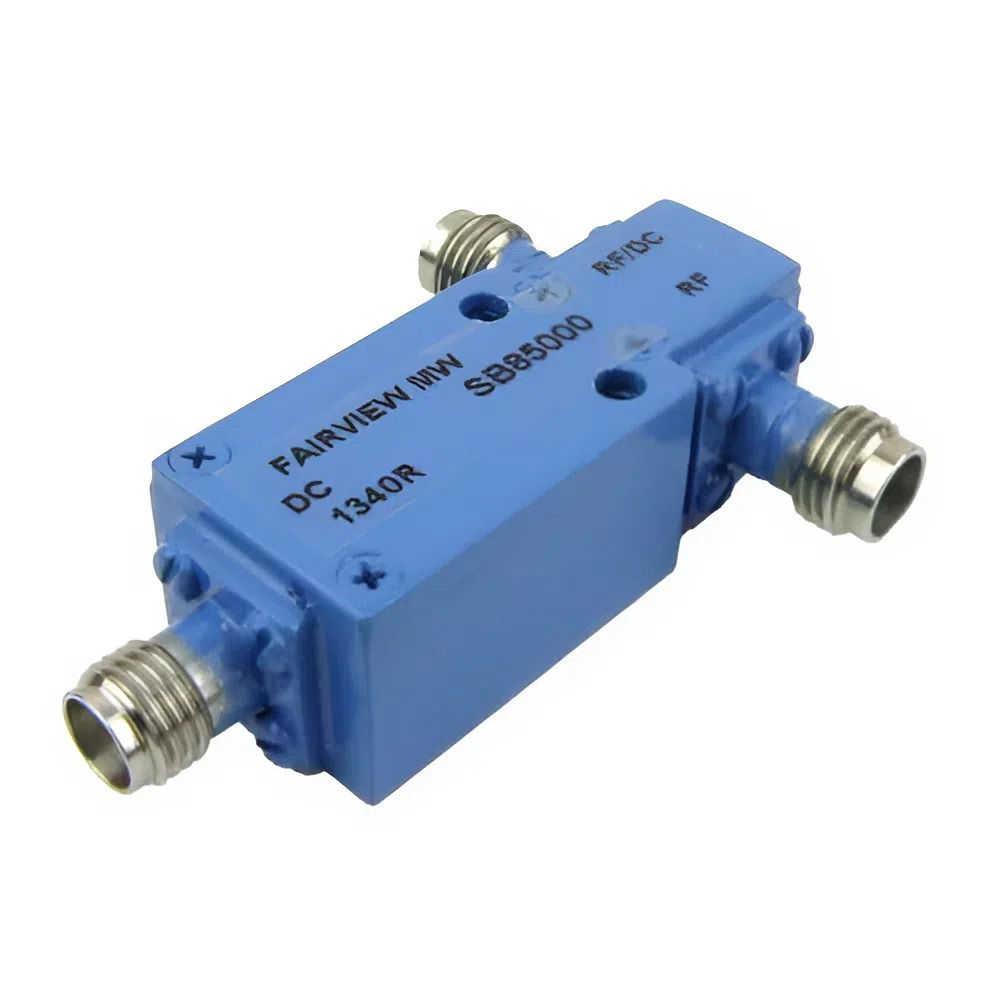

Before operating, identify the supported frequency range, voltage, and current ratings of the bias tee. For example, the Fairview SB85000 model operates from 0.03 MHz to 85 GHz, with a maximum current of 500 mA. In addition, prepare high-quality coaxial cables with the correct impedance to avoid signal loss.

Step 2: Power off before making connections

All connections must be made when devices are powered off. This is a key rule to prevent short circuits or damage to components.

Step 3: Connect to the correct ports

RF port: Connect to the high-frequency signal output from the transmitter or measuring device.

DC port: Connect to the DC power supply to provide bias.

OUT port: Connect to the receiving equipment, such as a receiver or spectrum analyzer.

Step 4: Power on and verify signals

After completing the connections, turn on the system and observe the output. A spectrum analyzer can be used to confirm that the RF signal passes through the bias tee without loss or interference.

Step 5: Monitor and perform regular maintenance

If abnormal signals occur, recheck the connections, cable condition, and connector tightness. Routine cleaning prevents dust and oxidation, helping the device remain stable over the long term.

Safety Notes During Use

When working with a bias tee, always adhere to the manufacturer’s technical limits. For instance, with the Fairview SB85000, the DC voltage should not exceed 25 V and the maximum current is 500 mA. Coaxial cables must meet the 50 Ohm standard and should not be bent or damaged.

Additionally, the device should be kept in a dry environment, away from excessive heat or humidity. In industrial environments or when working with high voltages, operators should use proper personal protective equipment.

Common Mistakes to Avoid

New users of bias tees often make mistakes such as misconnecting the RF, DC, and OUT ports; supplying power beyond the rated limits; or making changes to connections while the system is still running.

Another common oversight is neglecting routine cleaning, which can cause contact oxidation, reduce signal quality, and shorten the device’s lifespan.
