Measurement Mode: PE, EE, PECT, EEV
Measurement Rate Manual: 4 readings per second
Measurement Range
+ PE: 0.63 - 500mm (0.025 - 19.999 inches)
+ EE: 2.54 - 102mm (0.100 - 4.000 inches)
+ PECT: 0.63 - 500mm (0.025 - 19.999 inches)
+ PECT: 10.0 - 254mm (0.001 - 0.100 inches)
+ EEV: 1.00 - 150mm (0.040 - 6.000 inches)
Measurement Accuracy: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.01mm (0.001 inch)
Velocity Calibration Range: 1250 - 13,995m/s
A-Scan: Stored in memory with each reading for review on PC
Waterproof - depth ratings: Maximum depth 300 metres (1,000 feet) - equivalent to IP68
Data logging: 5,000 with A-scan image & gauge settings in one batch
Calibration Options: Velocity & material type
Transducer Probe Type: Dual and single element
Transducer Frequency Range: 1 - 10MHz
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Display Refresh Rate: 25Hz
Units (selectable): mm or inches
Operating Temperature: -30 to 60ºC (-20 to 140ºF)
Size (length x diameter): 229.0 x 60.33mm (9.0 x 2.4 inches)
Weight (including batteries): 680g (24.0oz)
RS232 Interface: Bi-directional
Packing List: Elcometer NDT UG20DL gauge, couplant, carry case, user manual, test certificate,3 x AA batteries, ElcoMaster® software, transfer cable, spare gaskets and lubrication set
Note: A transducer is not suppied with the Gauges, must be ordered separately

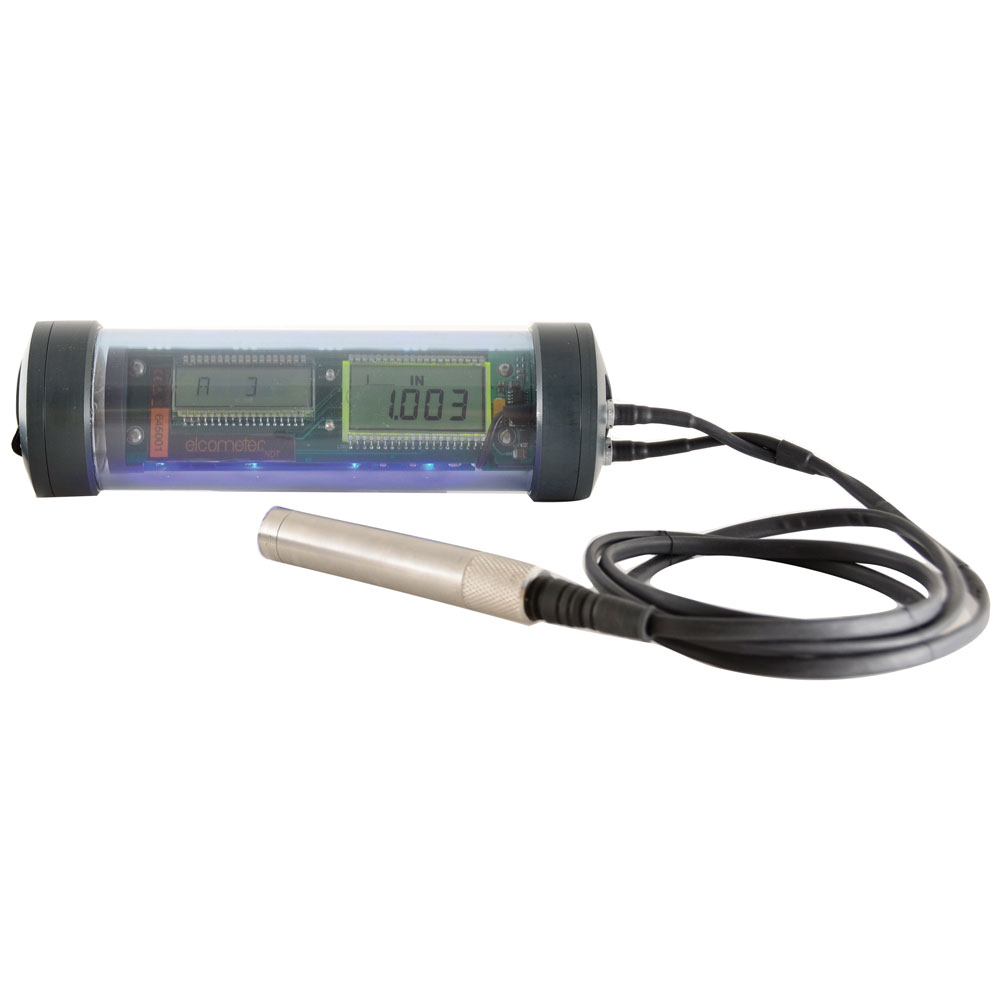

The UG20DL is an underwater material and coating thickness gauge ideal for offshore inspections.
Waterproof to a depth of 300 metres (1,000 feet) the UG20DL offers many features and benefits of the CG100 series in an easy to use brightly lit gauge.
Offering both dual & single element transducers the UG20DLs memory allows users to store up to 5,000 individual readings, together with the A-Scan waveform which can be downloaded to the data management software for further analysis on dry land.
 |
Features:
|
UG20DL Underwater Thickness Gauge
Technical Specification
|
Model & Part Number |
UG20DL |
|
Material thickness digits display |
■ |
|
Measurement Mode |
Dual Element: PE, EE (ThruPaint™), PECT Single Element: EEV (ThruPaint™) |
|
Measurement Rate Manual: |
4 readings per second |
|
Measurement Range |
PE: 0.63 - 500mm (0.025 - 19.999 inches) |
|
Measurement Accuracy |
± 1% or ±0.1mm whichever is the greater |
|
Measurement Resolution |
0.01mm (0.001 inch) |
|
Velocity Calibration Range |
1250 - 13,995m/s (0.0492 - 0.5510in/ms) |
|
A-Scan |
Stored in memory with each reading for review on PC |
|
Calibration setups |
1 user programmable & 8 pre-calibrated velocities for: |
|
Waterproof - depth ratings |
Maximum depth 300 metres (1,000 feet) - equivalent to IP68 |
|
Pulser type |
Dual square wave pulsers |
|
Gain |
Automatic gain control (AGC) with 100dB range, |
|
Timing |
Precision 25MHz TCXO with single shot |
|
Data logging |
|
|
Calibration Options |
Velocity & material type |
|
Transducer Probe Type |
Dual and single element |
|
Transducer Frequency Range |
1 - 10MHz |
|
Transducer recognition |
Custom automatic (dual transducers) & manual - selectable from a list |
|
V-path / dual path error correction |
Automatic |
|
Probe Zero |
Automatic (dual transducers) & manual (via integrated probe disk) |
|
Display |
12.7mm (1/2") 4.5 digit LCD |
|
Display Refresh Rate |
25Hz |
|
Units (selectable) |
mm or inches |
|
Backlight |
on / off / auto |
|
Repeatability / Stability Indicator |
■ |
|
Battery Type |
3 x AA alkaline |
|
Battery Life (approximate) |
50 hours (15 hours with backlight on) |
|
Low Battery Indicator |
■ |
|
Battery Save Mode |
Auto |
|
Operating Temperature |
-30 to 60ºC (-20 to 140ºF) |
|
Size (length x diameter) |
229.0 x 60.33mm (9.0 x 2.4 inches) |
|
Weight (including batteries) |
680g (24.0oz) |
|
Case design |
High strength transparent plastic housing with |
|
Transducer connctor type |
LEMO underwater connectors |
|
RS232 Interface |
Bi-directional |
|
Packing List |
Elcometer NDT UG20DL gauge, couplant, carry case, user manual, test certificate, |
