Adjustable Voltage:
0.5kV - 1kV in 50V steps
1kV to 30kV in 100V steps
High Voltage Output Accuracy: ±5% or ±50V below 1000 Volts
Operating Temperature: 0°C to 50°C (32°F to 120°F)
Power Supply: Rechargeable lithium ion battery, fully charged within 4 hours
Measured Current Flow Accuracy: ±5% of full scale
Output Current:0 - 100µA maximum
Typical Battery Life - Backlight Off (On):
- DC5: 40 (20) hours
- DC15: 20 (15) hours
- DC30: 10 (8) hours
Instrument Case Dimensions: Waterproof, ABS case; 520 x 370 x 125mm (20.5 x 14.5 x 5”)
Weight: Base unit (including battery pack): 1.2kg (2.7lb) Handle: 0.6kg (1.3lb)

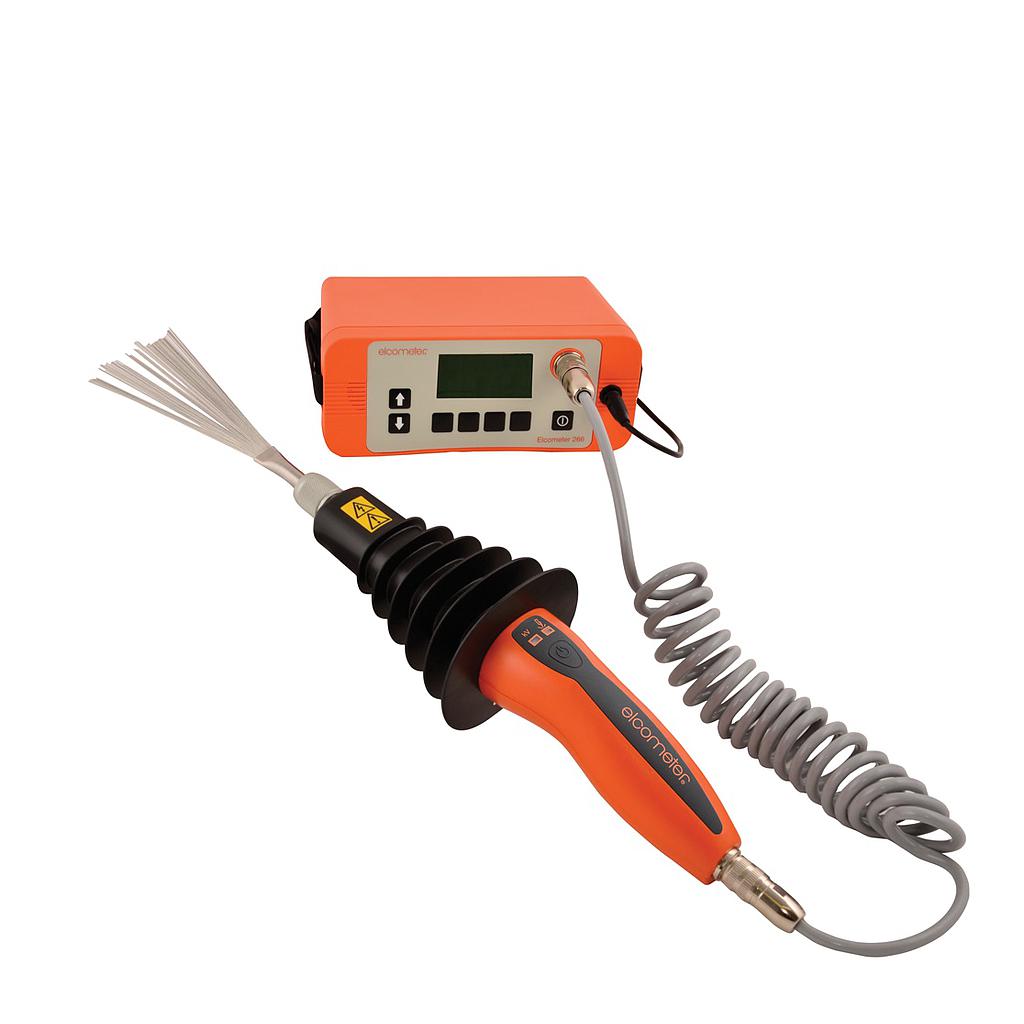

Packing List: Elcometer 266 DC Holiday Detector, battery pack, curly connection cable for high voltage handle, 10m (32’) signal return lead, battery charger with UK, EUR, US and AUS plugs, band brush, shoulder strap, tough plastic carry case and operating instructions
c/w CALIBRATION CERTIFICATE
The Elcometer 266 does not include the probe handle; please select the required handle from the accessories
