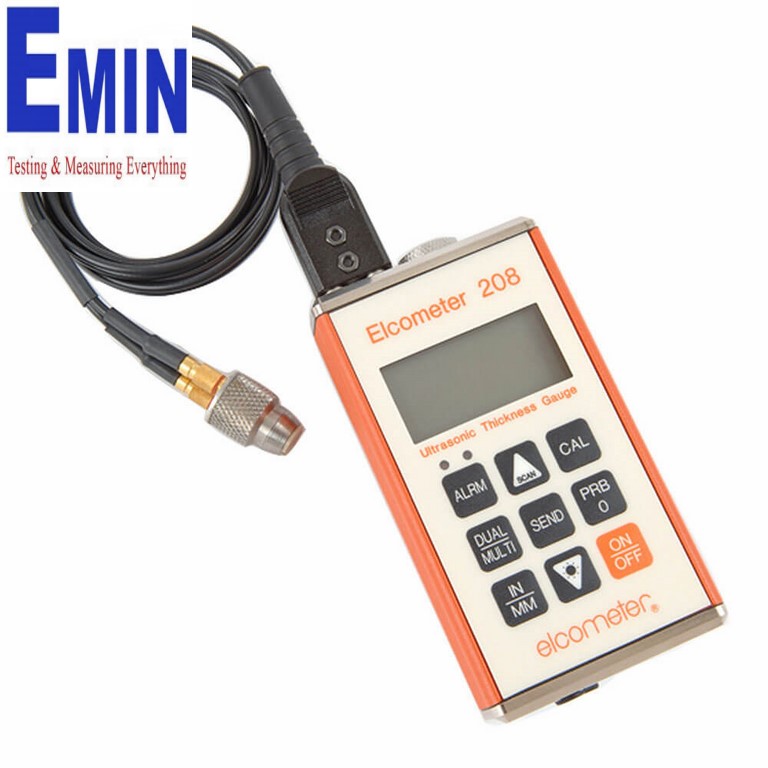

Elcometer 208 Ultrasonic ThruPaint Thickness Gauge (0,63 - 500mm)
Manufacture: Elcometer
Model: C208----1
Origin: England
Warranty: 12 month
Scan Mode
Alarm Mode
Maximum Measurement Range: 0.63 - 500mm; 2.54 - 25.4mm in Echo-to-Echo Mode
Velocity Range: 1250 - 10000m/s (0.0492 - 0.3937 in/μs)
Accuracy: ±0.1mm
Resolution: 0.01mm
Units: Millimetres and Inches
Operating Temperature: -20°C to 50°C
Keypad Type: Sealed Membrane
Display: 114mm Digit Liquid Crystal Display with backlight
Battery Type (Life): 2 x AA batteries (200 hours)
Weight: 295g
Dimensions: 63 x 120 x 31mm
Packing List: Elcometer 208 or 208DL gauge, bottle of couplant, 2x batteries, carry case, calibration
certificate and operating instructions.
Note: Transducers are supplied separately
Supplied with or without data logging, each gauge can be used with a wide range of measurement transducers and has a wide range of functions including Scan mode and Alarm mode. Transducers are supplied separately.
Elcometer 208 & 208DL Ultrasonic ThruPaint™ Thickness Gauge
Technical Specification
|
Part Number |
C208----1 |
C208DL----1 |
|
Model |
Elcometer 208 |
Elcometer 208DL |
|
Echo-to-Echo Mode |
• |
• |
|
Scan Mode |
• |
• |
|
Alarm Mode |
• |
• |
|
Data Output (Immediate) |
• |
• |
|
Data Logging (Memory) |
|
1000 readings |
|
ElcoMaster® Software |
|
• |
|
Certificate |
• |
• |
|
Maximum Measurement Range |
0.63 - 500mm (0.025 - 20”), 2.54 - 25.4mm (0.1 - 1.0”) in Echo-to-Echo Mode |
|
|
Velocity Range |
1250 - 10000m/s (0.0492 - 0.3937 in/µs) |
|
|
Accuracy |
±0.1mm (0.004”) |
|
|
Resolution |
0.01mm (0.001”) |
|
|
Units |
Millimetres and Inches |
|
|
Operating Temperature |
-20°C to 50°C (-4°F to 120°F) |
|
|
Keypad Type |
Sealed Membrane |
|
|
Display |
114mm (4½”) Digit Liquid Crystal Display with backlight |
|
|
Battery Type |
2 x LR6 (AA) 1.5V Alkaline or 1.2V NiCad cell |
|
|
Weight |
295g (10oz) |
|
|
Dimensions |
63.5 x 120.6 x 31.75mm (2.5 x 4.75 x 1.25”) |
|
|
Packing List |
Elcometer 208 or 208DL ultrasonic gauge, bottle of couplant, battery x2, carry case and operating instructions. Elcometer 208DL only: CD with ElcoMaster® software and data transfer cable |
|
