Maximum Measurement Range: 0.15 - 25.4mm
Velocity Range: 1250 - 10000m/s
Accuracy: ±0.02mm
Resolution: 0.002mm
Units: mm or inch
Operating Temperature: -30°C to 50°C
Transducer: Each unit is supplied with 15MHz, 6mm microdot right angle transducer
Display: 114mm Digit Liquid Crystal Display with backlight
Battery Type (Life): 2 x AA 1.5V used 200 hours
Data logging: 1000 readings
Weight: 295g
Dimensions: 63 x 120 x 31mm
Packing List: Elcometer 207DL ultrasonic couplant, 2 x batteries, carry case,
microdot transducer, calibration certificate and operating instructions, CD with ElcoMaster® software and data transfer cable
The Elcometer 207 series of Precision Ultrasonic Thickness Gauges is designed to provide accurate thickness measurements on thin materials.
All Elcometer 207 and 207DL precision gauges have the special PLAS mode. This is specifically designed to provide accurate readings when measuring thin plastics.
Using the latest transducer designs, the Elcometer 207 precision ultrasonic thickness gauges can accurately measure material thickness from 0.15 - 25.4mm (0.006-1”) without the need to change the measurement mode.

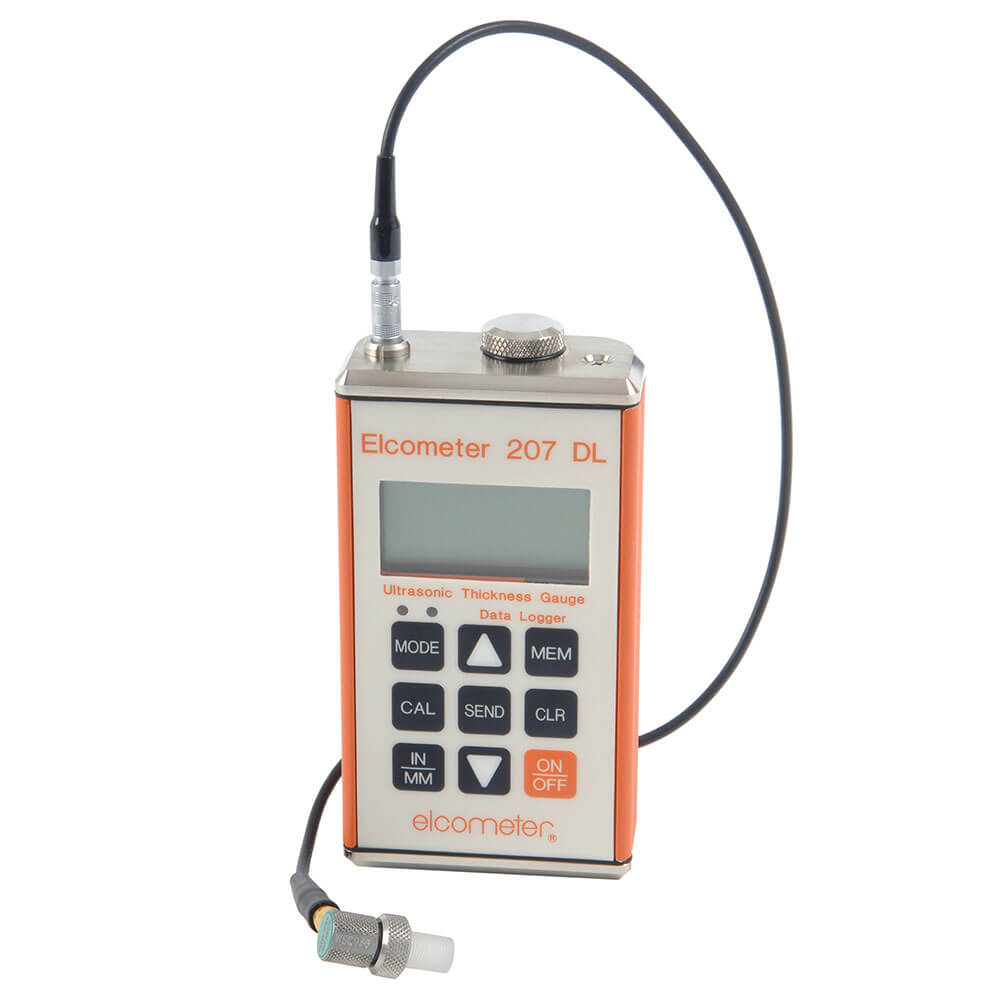

Elcometer 207 Precision Ultrasonic Thickness Gauge
Technical Specification
|
Part Number |
C207----1 |
C207DL----1 |
|
Model |
Elcometer 207 |
Elcometer 207DL |
|
PLAS Mode* |
• |
• |
|
Scan & Differential Modes |
• |
• |
|
Alarm Mode |
• |
• |
|
Data Output (immediate) |
• |
• |
|
Data Logging (memory) |
|
1000 readings |
|
ElcoMaster® Software |
|
• |
|
Certificate |
• |
• |
|
Maximum Measurement Range |
0.15 - 25.4mm (0.006 - 1”) |
|
|
Velocity Range |
1250 - 10000m/s (0.0492 - 0.3937 in/µs) |
|
|
Accuracy & Resolution |
Accuracy(1): ±0.02mm (0.0008”); Resolution: 0.002mm (0.0001”) |
|
|
Resolution |
0.002mm (0.0001”) |
|
|
Units |
Millimetres and Inches |
|
|
Operating Temperature |
-30°C to 50°C (-20°F to 120°F) |
|
|
Transducer |
Each unit is supplied with 15MHz, 6mm (¼”) microdot right angle transducer |
|
|
Display |
114mm (4½) Digit Liquid Crystal Display with backlight |
|
|
Power |
AA 1.5V Alkaline or 1.2V NiCad cell |
|
|
Battery Type (Life) |
2 x AA 1.5V batteries (200 hours) |
|
|
Weight |
295g (10oz) |
|
|
Dimensions |
63 x 120 x 31mm (2.5 x 4.5 x 1.24") |
|
|
Packing List |
Elcometer 207 or 207DL gauge, ultrasonic couplant, 2 x batteries, carry case, microdot transducer, calibration certificate and operating instructions. |
|
