Manufacture: Elcometer
Model: C204C-TXC
Origin: England
Warranty: 12 month
Measurement &Thickness range: Pulsed Echo (PE): 0.63 - 500mm
Measurement Accuracy: ±1% or 0.1mm - whichever is the greater
Resolution: 0.1mm
Tough, impact, waterproof & dust resistant; equivalent to IP54
Measurement Rate: 4Hz (4 readings per second)
Operating Temperature: -10 to 50°C
Data Output: USB
Power Supply: 2 x AA batteries
Battery Life 2 Alkaline: Approx. 15 hours Lithium: Approx. 28 hours
Gauge Weight: 210g - including batteries, without transducer
Gauge Dimensions: 145 x 73 x 37mm - without transducer
Packing List: Elcometer 204 steel ultrasonic material thickness gauge, transducer, ultrasonic couplant,
carry pouch, screen protector, wrist harness, 2 x AA batteries, operating instructions,
calibration certificate.

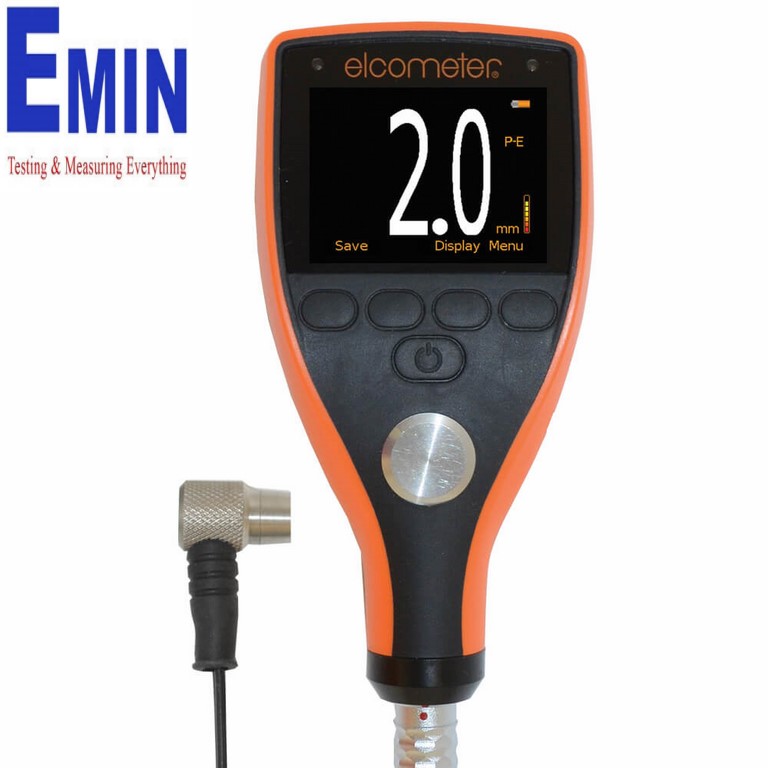

Elcometer 204 Steel Ultrasonic Material Thickness Gauge
Technical Specification
|
Product Features |
|
|
Material Thickness Gauge with 5MHz ¼" Dual Element Transducer |
C204C-TXC |
|
Easy to use menu structure in multiple languages |
■ |
|
Tough, impact, waterproof & dust resistant; equivalent to IP54 |
■ |
|
Bright colour screen; with automatic or manual brightness adjustment |
■ |
|
Scratch and solvent resistant display; 2.4" (6cm) TFT |
■ |
|
Large positive feedback buttons |
■ |
|
USB power supply via PC |
■ |
|
Gauge software updates1 via ElcoMaster® Software |
■ |
|
Data Output |
|
|
USB; to PC |
■ |
|
2 year gauge warranty2 |
■ |
|
Auto transducer recognition & ‘V-path’ correction |
■ |
|
Measurement Modes |
|
|
Pulsed Echo (PE) |
■ |
|
Measurement Rate |
4Hz |
|
Thickness Range3 |
|
|
Pulsed Echo (PE): 0.63 - 500mm (0.025-20”) |
■ |
|
Measurement Accuracy (whichever is the greater) |
±1% or ±0.1mm (0.004") |
|
Measurement Units |
|
|
mm or inches |
■ |
|
Repeatability / Stability Indicator |
■ |
|
Display Modes |
|
|
Reading |
■ |
|
Selectable Reading Resolution |
|
|
Lo; 0.1mm (0.01 Inch), 10m/s (0.001 in/μs) |
■ |
|
Statistics |
|
|
Number of readings (n), Mean (average) (x), Standard deviation (σ), |
■ |
|
Calibration Options |
|
|
Zero (using the integrated zero disc) |
■ |
|
|
|
|
Technical Specification |
|
|
Part Number |
Description |
|
C204C-TXC |
Elcometer 204 Steel Ultrasonic Material Thickness Gauge with 5MHz ¼" Right Angle Dual Element Transducer |
|
Certificate |
• |
|
Transducer Probe type |
Dual Element |
|
Measurement & Thickness range3 |
Pulsed Echo (PE): 0.63 - 500mm (0.025 - 20") |
|
Measurement Accuracy |
±1% or 0.1mm - whichever is the greater |
|
Resolution |
0.1mm (0.01") |
|
Measurement Rate |
4Hz (4 readings per second) |
|
Operating Temperature |
-10 to 50°C (14 to 122°F) |
|
Data Output |
USB |
|
Power Supply |
2 x AA batteries |
|
Battery Life4 |
Alkaline: Approx. 15 hours Lithium: Approx. 28 hours |
|
Gauge Weight |
210g (7.4oz) - including batteries, without transducer |
|
Gauge Dimensions |
145 x 73 x 37mm (5.7 x 2.87 x 1.46") - without transducer |
|
Packing List |
Elcometer 204 steel ultrasonic material thickness gauge, transducer, ultrasonic couplant, carry pouch, screen protector, wrist harness, 2 x AA batteries, operating instructions, calibration certificate and 2 year warranty extension card. |
