Measurement Mode: PE & PE with Gate
Measurement Rate: Manual: 4 readings per second
Measuring Range: 25.4 – 2440mm (1 – 96 inches)
Measurement Accuracy2: ± 1% or ±0.1mm whichever is the greater
Measurement Resolution: 0.0001mm (0.00001 inch)
Velocity Calibration Range: 250 - 10,000m/s; 0.0492 - 0.3937in/μs
Data logging: 8,000 readings
Calibration Options: fixed, single & 2 point
Transducer Probe Type: single element
Transducer Frequency Range: 1 - 10MHz
Display: 1/8 VGA
Units (selectable): mm or inches
Battery Type: 3 x AA alkaline
Battery Life (approximate): 150 hours
perating Temperature : -10 to 60ºC (14 to 140ºF)
Size (w x h x d): 63.5 x 165 x 31.5mm
Weight (including batteries): 383g
Transducer Connector Type: LEMO
Packing List: Elcometer NDT BG80DL or BG80TDL gauge, couplant, carry case,
user manual, test certificate, 3 x AA batteries, DakView software, RS232/DB9 & USB/DB9 transfer cable
Note: A transducer is not suppied with the Gauges, must be ordered separately
The BG80 range of bolt tension monitors accurately measures this elongation allowing the gauges to accurately measure time (nanoseconds), elongation, load, stress, and %strain of the bolt.

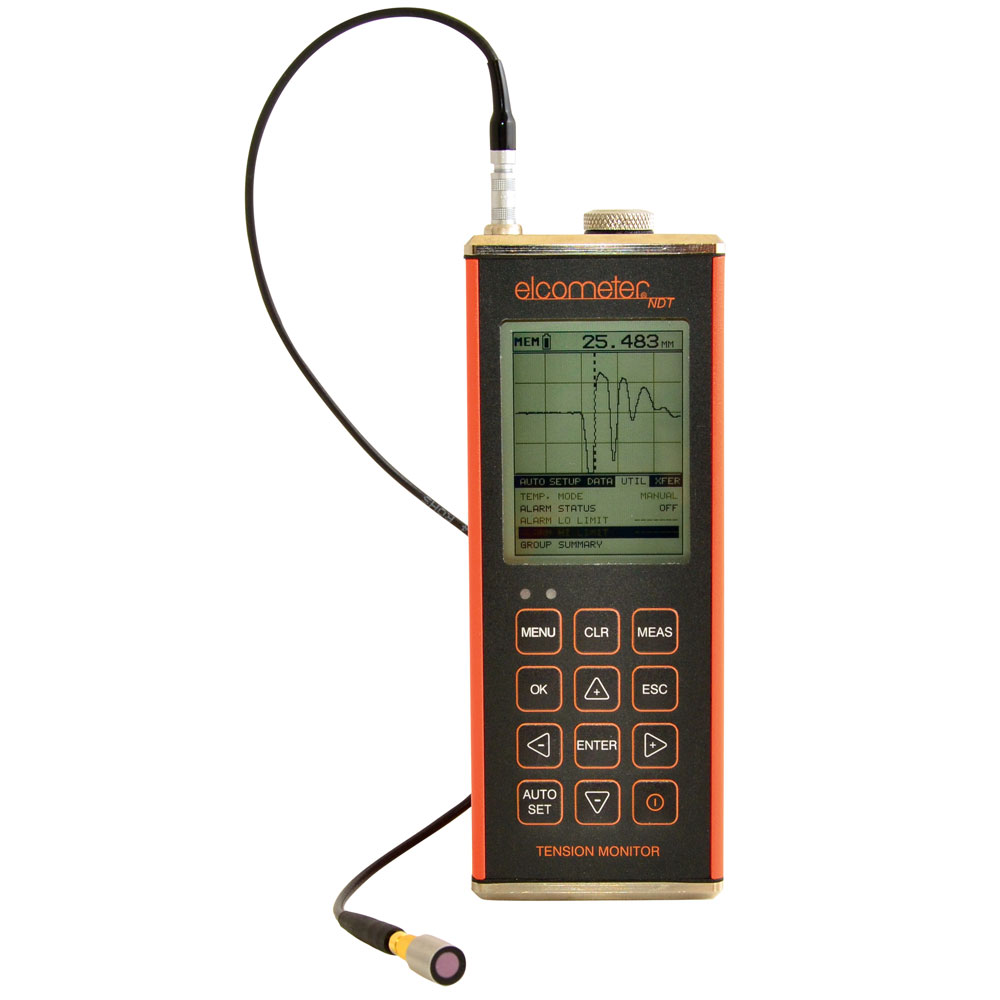

The Elcometer BG80 bolt tension monitor is available in two models: BG80DL and BG80TDL.
By using ultrasonics, bolt tension monitors are not affected by temperature, friction or resistance factors affecting the accuracy of standard torque measurement techniques - giving the BG80 range accuracy within 0.0001mm (0.00001 inch).
Using the gauge RS232 interface together with the optional shut off accessory the gauge can be programmed to automatically stop the tightening process when the appropriate load has been applied.
 |
Features:
|
|
|
|
 |
How does it work? As a fastener is tightened it stretches (elongates) in length. Manual torque wrenches measure the force applied when tightening a fastener, the accuracy can be affected by temperature, friction and resistance. As BG80 & BG80TDL ultrasonically measures the change in length accurately determining the applied load of a fastener as it is tightened, they are not affected by these factors. |
BG80 Bolt Tension Monitors
Technical Specification
|
Model & Part Number |
BG80DL & BG80TDL |
|
Material thickness digits display |
■ |
|
Measurement Mode1 |
PE & PE with Gate |
|
Measurement Rate: |
|
|
Measuring Range2 |
25.4 – 2440mm (1 – 96 inches) |
|
Measurement Accuracy2 |
± 1% or ±0.1mm whichever is the greater |
|
Measurement Resolution |
0.0001mm (0.00001 inch) |
|
Velocity Calibration Range |
1250 - 10,000m/s |
|
Additional Features: |
|
|
Limit alarm mode |
■ |
|
Data logging |
8,000 readings |
|
Calibration Options |
fixed, single & 2 point |
|
Transducer Probe Type |
single element |
|
Transducer Frequency Range |
1 - 10MHz |
|
Display |
1/8 VGA |
|
Units (selectable) |
mm or inches |
|
LED Backlight |
on / off / auto |
|
Repeatability / Stability Indicator |
■ |
|
Battery Type |
3 x AA alkaline |
|
Battery Life (approximate) |
150 hours |
|
Low Battery Indicator |
■ |
|
Battery Save Mode |
auto |
|
Operating Temperature |
-10 to 60ºC (14 to 140ºF) |
|
Size (w x h x d) |
63.5 x 165 x 31.5mm |
|
Weight (including batteries) |
383g (13.5oz) |
|
Aluminium case design with gasket sealed end |
■ |
|
Transducer Connector Type |
LEMO |
|
RS232 Interface |
■ |
|
Packing List |
Elcometer NDT BG80DL or BG80TDL gauge, couplant, carry case, user manual, test certificate, 3 x AA batteries, DakView software, RS232/DB9 & USB/DB9 transfer cable |
¹ PE: Pulse-Echo Mode
² Measuring range & accuracy depends on material, surface conditions and the transducer selected
