Elcometer 355-S Standard Coating Thickness Gauge (5000 reading, RS232)

Name: Elcometer 355-S Standard Coating Thickness Gauge (5000 reading, RS232)
Brand: ELCOMETER

ManufacturerELCOMETER(View more products from this manufacturer)

Model355-S

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacture: Elcometer
Model: 355-S
Origin: England
Warranty: 12 month

Operating Temperature: 0°C to 50°C
Storage Temperature: -10°C to 60°C
Dimensions: 175 x 83 x 42mm
Weight: 650g
Reading Speed: 40 readings per minute
Auto Repeat Mode: 130/140 readings per minute
Data Output: RS232C Serial or Parallel Output via D25 Type Connector (Female)
Memory Standard: 5,000 reading memory in pre-set batches
Battery Type: 3 x 1.5V AA Cells (Alkaline) or 3 x 1.5V Nickel Metal Hydride rechargeable cells
Battery Life: Minimum: 40 hours with alkaline batteries, 20 hours with rechargeable batteries
Packing List: Elcometer 355 Top or Standard Gauge, leather carry case, 3 x AA batteries, ElcoMaster® software, PC cable and operating instructions

Note: Each coating thickness gauge is supplied without a probe

Manual

Datasheet

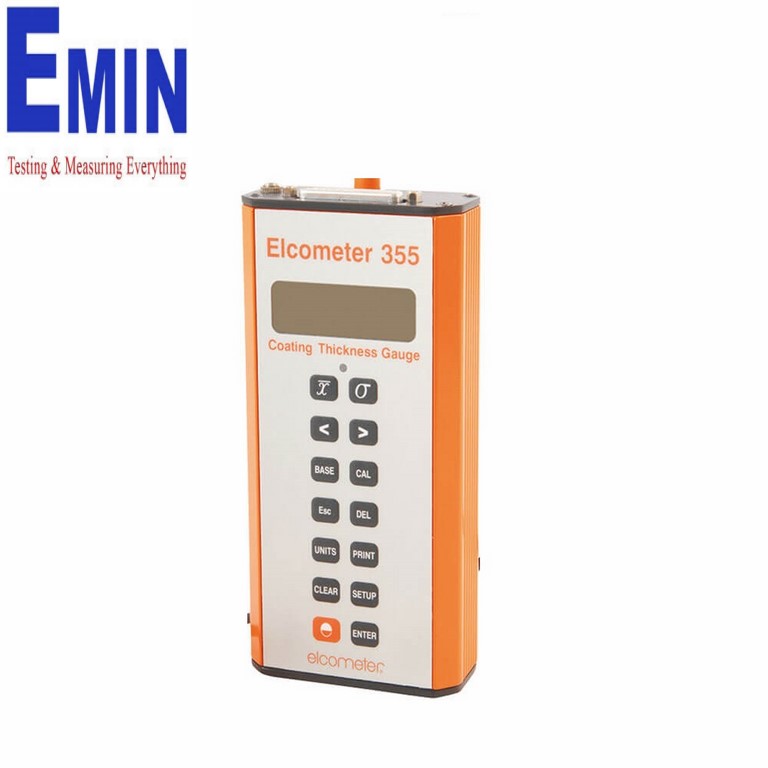

Elcometer 355 Coating Thickness Gauge

The Elcometer 355 Coating Thickness Gauge watchwords are accuracy, simplicity, versatility and durability making this a true state of the art hand-held measuring system packed with time-saving and cost-cutting features.

Available as a standard and top model, the unit large memory stores up to 10,000 readings in batches and data can be output to PC, datalogger or printer as required.

With a comprehensive range of Probe Modules available, simply select the most appropriate for the application. All modules are supplied with calibration foils.

±1% or 1µm, whichever is the greater, accuracy
Rugged aluminium case designed for the toughest environments
ElcoMaster^® software supplied
Full statistical analysis - mean standard deviation, number of readings, highest and lowest value
RS232 output
Date and time stamp

Each coating thickness gauge is supplied without a probe allowing the choice of the correct probe for the relevant applications.

lcometer 355 Coating Thickness Gauge

Technical Specification

Part Number	Description	Certificate
A355----S	Elcometer 355 Standard Coating Thickness Gauge	ο
A355----T	Elcometer 355 Top Coating Thickness Gauge	ο
Operating Temperature	0°C to 50°C (32°F to 120°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Dimensions	175 x 83 x 42mm (6.9 x 3.3 x 1.6”)
Weight	650g (1.43lb)
Reading Speed	40 readings per minute
Auto Repeat Mode	130/140 readings per minute
Data Output	RS232C Serial or Parallel Output via D25 Type Connector (Female)
Memory	Standard: 5,000 reading memory in pre-set batches Top: 10,000 reading memory in up to 200 batches (individually calibrated)
Battery Type	3 x 1.5V AA Cells (Alkaline) or 3 x 1.5V Nickel Metal Hydride rechargeable cells
Battery Life	Minimum: 40 hours with alkaline batteries, 20 hours with rechargeable batteries
Packing List	Elcometer 355 Top or Standard Gauge, leather carry case, 3 x AA batteries, ElcoMaster^® software, PC cable and operating instructions
