Manufacture: Elcometer
Model: 206
Origin: England
Warranty: 12 month
Maximum Measurement Range: 0.63 - 500mm, dependent on transducer and material
Velocity Range: 1250 - 10000m/s
Accuracy: ±0.1mm , dependent on material and conditions
Resolution: 0.01mm
Alarm Mode
Units: mm or inch
Operating Temperature : -30°C to 50°C
Keypad Type: Sealed Membrane
Display: 114mm Digit Liquid Crystal Display with backlight
Battery Type: AA 1.5V Alkaline or 1.2V NiCad cell
Battery Life: 200 hours Alkaline/120 hours NiCad
Weight: 295g
Dimensions: 63 x 120 x 31mm
Packing List: Elcometer 206, bottle of couplant, 2 x batteries, carry case, calibration certificate and operating instructions.
Note: Transducers are supplied separately.

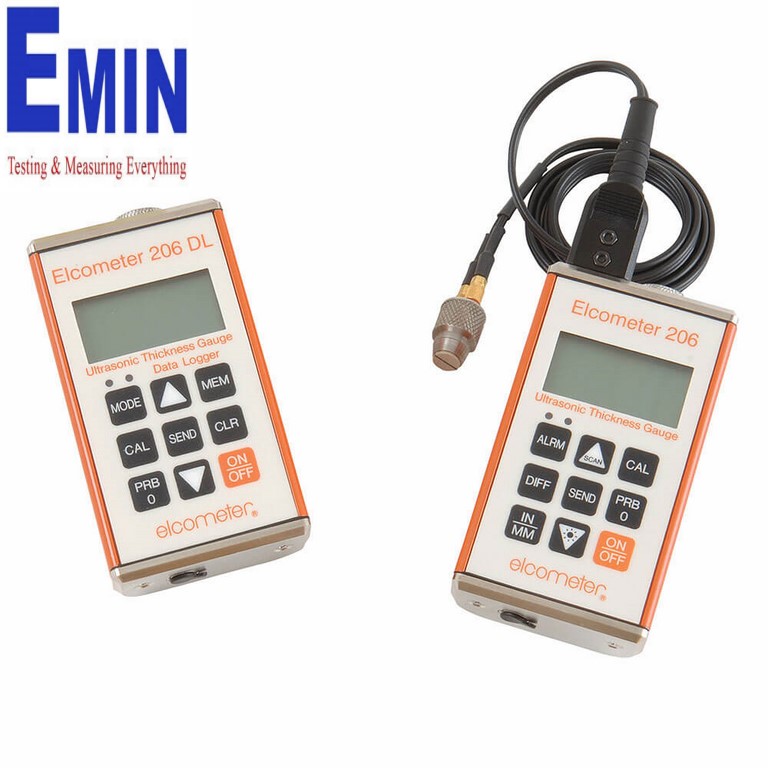

Elcometer 205, 206 & 206DL Ultrasonic Thickness Gauges
Technical Specification
|
Part Number |
C205----1 |
C206----1 |
C206DL----1 |
|
Model |
Elcometer 205 |
Elcometer 206 |
Elcometer 206DL |
|
Scan Mode |
• |
• |
• |
|
Differential Mode |
|
• |
• |
|
Alarm Mode |
|
• |
• |
|
Data Output (Immediate) |
|
• |
• |
|
Data Logging |
|
|
1000 readings |
|
ElcoMaster® software |
|
|
• |
|
Certificate |
• |
• |
• |
|
Maximum Measurement Range |
0.63 - 500mm (0.025 - 20”), dependent on transducer and material |
||
|
Velocity Range |
1250 - 10000m/s (0.0492 - 0.3930 in/µs) |
||
|
Accuracy |
±0.1mm (0.004”), dependent on material and conditions |
||
|
Resolution |
0.01mm (0.001”) |
||
|
Units |
Millimeters and inches |
||
|
Operating Temperature |
-30°C to 50°C (-20°F to 120°F) |
||
|
Keypad Type |
Sealed Membrane |
||
|
Display |
114mm (4½") Digit Liquid Crystal Display with backlight |
||
|
Battery Type |
AA 1.5V Alkaline or 1.2V NiCad cell |
||
|
Battery Life |
200 hours Alkaline/120 hours NiCad |
||
|
Weight |
295g (10oz) |
||
|
Dimensions |
63 x 120 x 31mm (2.5 x 4.75 x 1.25”) |
||
|
Packing List |
Elcometer 205 or 206DL gauge, bottle of couplant, 2 x batteries, carry case, calibration certificate and operating instructions. |
||
