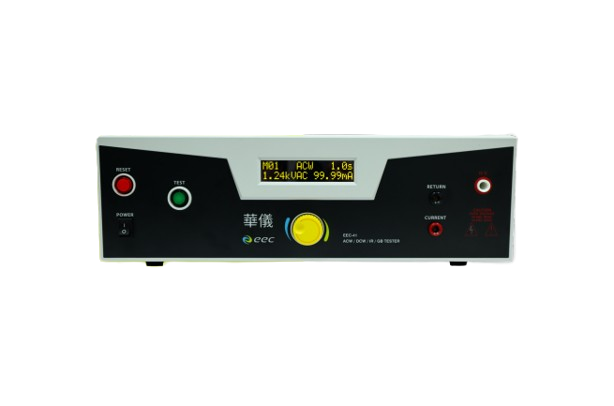

EEC EEC-41 Safety Tester (3kV/100.0mAAC, 4kV/5mADC, 1kV/1000MΩ)

INPUT

Voltage (AC): 100–120Vac / 200–240Vac ±10%

Fuse: 15A / 250Vac

Frequency: 50/60Hz ±5%

AC WITHSTAND VOLTAGE

Output Rating: 3kV / 100mA

Voltage

Range: 0–3.00kV

Resolution: 0.01kV

Accuracy: ± (1.5% of setting 5V)

Current

Hi Limit Range: 0.10–99.99mA / 100.0mA

Lo Limit Range: 0.00–99.99mA / 100.0mA

Resolution: 0.01mA / 0.1mA

Accuracy: ± (2% of setting 6 counts) for 0–99.99mA

Accuracy: ± (2% of setting 2 counts) for 100.0mA

-

Output Frequency

Range: 50Hz / 60Hz

Ramp Up Time

Range: 0.2–60.0s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Dwell Time

Range: 0, 0.2–60.0 (0 = continuous)

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

DC WITHSTAND VOLTAGE

Output Rating: 4kV / 5mA

Voltage

Range: 0–4.00kV

Resolution: 0.01kV

Accuracy: ± (1.5% of setting 5V)

Current

Hi Limit Range: 0.02–5.00mA

Lo Limit Range: 0.00–5.00mA

Resolution: 0.01mA

Accuracy: ± (2% of setting 2 counts)

Ramp Up Time

Range: 0.2–60.0s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Dwell Time

Range: 0, 0.2–60.0 (0 = continuous)

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Discharge Time: < 50ms, < 100ms for capacitor load

Maximum Capacitive Load

0.17µF < 1kV

0.09µF < 2kV

0.07µF < 3kV

0.05µF < 4kV

INSULATION RESISTANCE

Output Rating: 1kV / 1000MΩ

Voltage

Range: 0.10–1.00kV

Resolution: 0.01kV

Accuracy: ± (1.5% of setting 5V)

Hi/Lo Limit

Range: 1–1000MΩ

Resolution: 1MΩ

Accuracy: 0.10–0.49kV ± (7% of setting 2 counts)

Accuracy: ≥0.50kV ± (3% of setting 2 counts)

Ramp Up Time

Range: 0.1s or 2s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

Dwell Time

Range: 0, 0.5–999.9s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)

GROUND BOND

Output Rating: 32A / 600mΩ / 8V

Current

Range: 1–32.0A

Resolution: 0.0A

Accuracy: ± (2% of setting 2 counts)

Offset

Range: 0–100mΩ

Resolution: 1mΩ

Accuracy: ± (2% of setting 2 counts)

Output Frequency

Range: 50Hz / 60Hz

Ramp Timer

Range:

 0–250mΩ: 0.1s

 251–300mΩ: 0.2s

 301–450mΩ: 0.3s

 >450mΩ: 0.4s

Dwell Time

Range: 0, 0.1–120.0s

Resolution: 0.1s

Accuracy: ± (0.1% of setting 0.05 sec)
