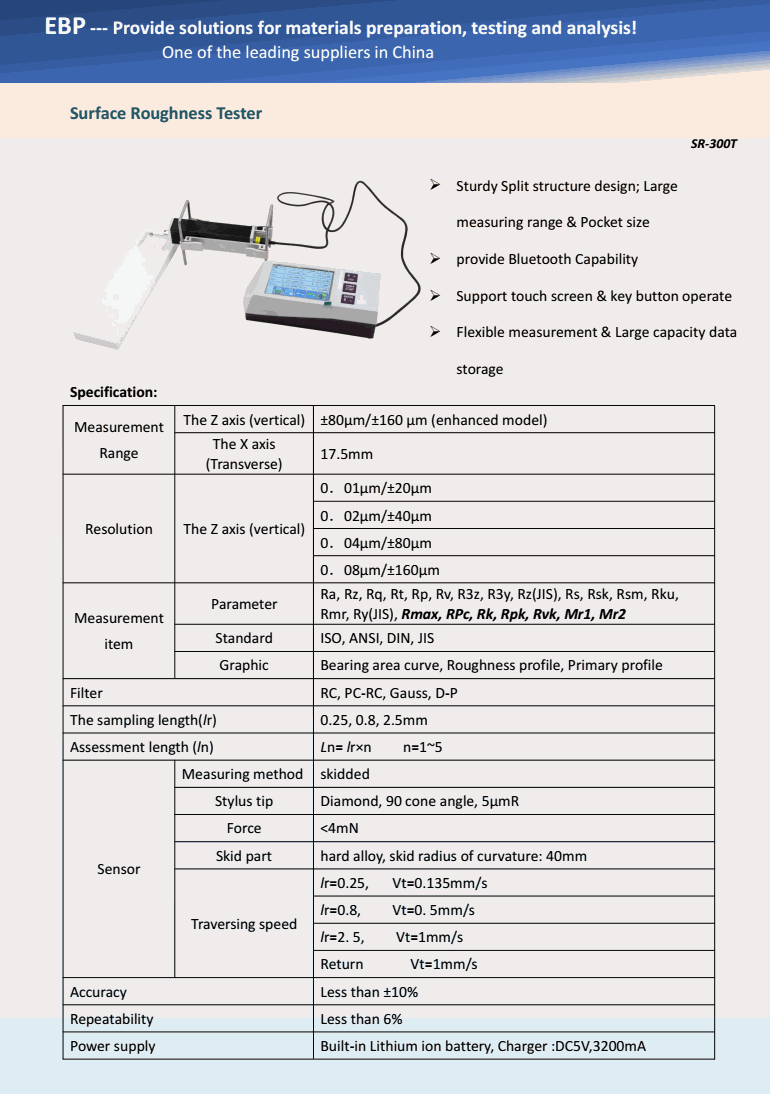

Measurement Range:
The Z axis (vertical): ±80μm/±160 µm (enhanced model)
The X axis (Transverse): 17.5mm
Resolution:
The Z axis (vertical):
0． 01μm/±20μm
0． 02μm/±40μm
0． 04μm/±80μm
0． 08μm/±160μm
Measurement item:
Parameter: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2
Standard: ISO, ANSI, DIN, JIS
Graphic: Bearing area curve, Roughness profile, Primary profile
Filter: RC, PC-RC, Gauss, D-P
The sampling length(lr): 0.25, 0.8, 2.5mm
Assessment length (ln): Ln= lr×n n=1~5
Sensor:
Measuring method: skidded
Stylus tip: Diamond, 90 cone angle, 5μmR
Force: <4mN
Skid part: hard alloy, skid radius of curvature: 40mm
Traversing speed:
lr=0.25, Vt=0.135mm/s
lr=0.8, Vt=0. 5mm/s
lr=2. 5, Vt=1mm/s
Return: Vt=1mm/s
Accuracy: Less than ±10%
Repeatability: Less than 6%
Power supply: Built-in Lithium ion battery, Charger: DC5V,3200mA
