Measuring units XT40-M / XT40-S
Type of detector: TruePSD 30 mm [1.2"]
Communication: BT Wireless technology
Battery type: Heavy duty Li Ion chargeable
Operating time: Up to 24 h continuously
Resolution: 0.001 mm [0.05 mils]
Measuring errors: <1%
Measurement range: Up to 10 m [33 feet]
Type of laser: Diode laser
Laser wavelength: 635–670 nm
Laser class : Safety class 2
Laser output: <1 mW
Electronic inclinometer: 0.1° resolution
Environmental protection: IP class 66 and 67
Operating temperature: -10–50 °C
Storage temperature: -20–50 °C
Relative humidity: 10–95%
OLED display: 128x64 pixels (option)
Housing material : Anodized aluminium + PC/ABS + TPE
Dimensions: WxHxD: 76x76.7x39.3 mm [3.0x3.0x1.5"]
Weight: 245 g [8.6 oz]
Cable
Charging cable (splitter cable): Length 1 m [39.4"]
Brackets etc.
Shaft brackets
Type: V-bracket for chain, width 18 mm [0.7"].
Shaft diameters: 20–150 mm [0.8–6.0"]
Material: anodised aluminium
Rods
Length: 120 mm, 60 mm [4.72", 2.36"] (extendable)
Material: Stainless steel

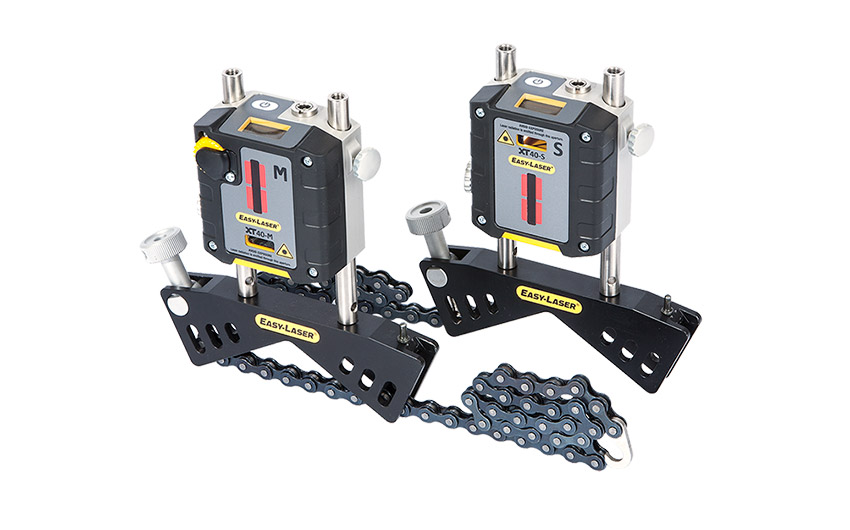

System Easy-Laser® XT440 Shaft, Part No. 12-0966, includes:
1 Measuring unit XT40-M
1 Measuring unit XT40-S
2 Shaft brackets with chains and rods
4 Rods 60 mm [2.36"]
1 Measuring tape 3 m [9.8']
1 Hexagon wrench set
1 Charger (100–240 V AC)
1 DC split cable for charging
1 DC to USB adapter, for charging
1 Quick reference manual
1 Cleaning cloth for optics
1 USB memory with manuals
1 Carrying case Small
Weight: 3.8 kg [8.4 lbs]
Dimension WxHxD: 335x280x130 mm [13.2"x11.0"x5.1"]
