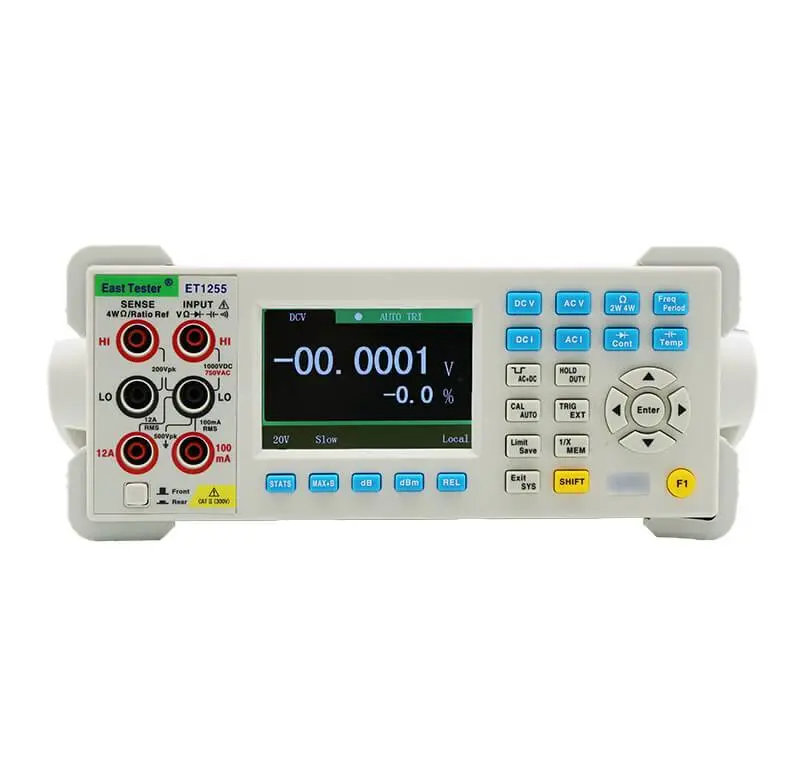

Technical indicators
- Display screen: 3.5” TFT LCD (resolution of 320*480)
- Number of display digits: 44000(4 3/4)
- Display rate: Slow: 2 seconds per second; Medium: 5 times per second; Fast: 7 times per second
- Measuring range:
+ DCV: 10μV~1100V
+ DCI: 10nA~12A
+ ACV: 10μV~800V
+ ACI: 10nA~12A
+ Resistance: 10mΩ~1GΩ
+ Capacitance: 1pF~10mF
+ Frequency: 1Hz~20MHz
General technical specifications
- Power supply voltage: 220V AC ± 10%, 110V AC ±10%, 45-65Hz;
- Display: 3.5 inch TFT LCD screen, resolution 480x320, color 16M;
- Operating Temperature: 0~40 ℃;
- Storage environment: - 10~50 ℃;
- Relative humidity <80%;
- Interface: ET124X Standard - USB Device, ET125X Standard - USB Device, RS232, other optional - GPIB, USB Host, LAN, Wifi, Bluetooth;
- Shape size: 265 mm * 105 mm * 305 mm (width * height * depth);
- Weight: 2.3kg
Standard accessories
- Three core power cord*1(30A51)
- Three core pen*1(32A52)
- Backup power fuse*2(32A52)
Optional accessories
- GPIB cable
- Cabinet installation kit
- Rs232 serial port line
- USB data line
