Infrared
Detector resolution: 384 x 288
Spectral range: 8~14um
Refresh rate: 25Hz
NETD: 45mK@25℃
Object pieces
Lens: 35mm F/1.0
FOV: 11°x 8°
Focus mode: Manual
Focus range: ≥2 meters
Eyepieces
Eyepieces resolution: 1024 x 768
Diopter adjust: ±6.00DS
Zoom: 14X: Display type
OLED
Display resolution: 1024 x 768
Display size: 0.39 inch
Functions
Zoom: 1X，2X，4X，8X
Palette: Iron red、white hot、black hot、green、rainbow、red hot
Hot spot: Support
Photograph: Support
WIFI: Support
Storage: Built-in EMMC 32G
Lightness adjust: 5 level
Laser range: Optional laser range via USB interface
Transmission: USB Type-C、HDMI
Power supply
Battery: 4 x CR123A detachable battery
Duration time: ≤5 hours
Power charging: Charging with external battery pack or using disposable batteries
Working/storage
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃
Anti-shock: ≤900g
Water proof: IP67
Size/weight
Shock mount: Different type for options
Net weight: 740g
Size: 227mm x 60mm x 83mm
Detection distance
Vehicle: ≤3450 meters
Human: ≤2300 meters
Boar: ≤2060 meters
Recognition distance
Vehicle: ≤880 meters
Human: ≤580 meters
Boar: ≤520 meters
GS series packing list：
GS thermal imaging rifle scope: 1
USB Type-C cable: 1
HDMI cable: 1
Changeable shock mount: 1
User manual: 1
Warranty card: 1
1. Overview

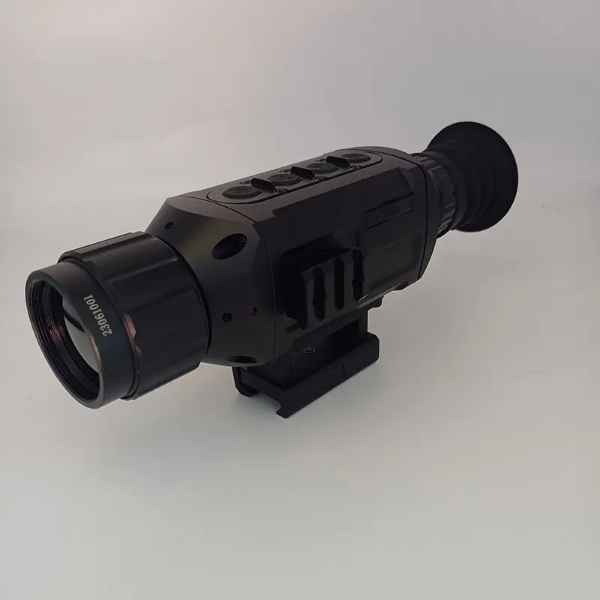

GS series thermal riflescope have a variety of models to choose from, meeting the shooting needs of short, medium, and long distances. At the same time, it also provides the function of an external laser rangefinder, which automatically cooperates with the aiming reticle to achieve fast and accurate shooting. The product has a strict moisture-proof and waterproof design, suitable for all-weather outdoor and indoor use.
Detachable battery, easy to replace, suitable for outdoor use
Adaptive AGC/DDE image technology
0.39-inch OLED display with 1024*768 resolution
Built-in EMMC memory chip for photo storage
Waterproof grade IP67
2 different shock mounts to meet the use of different guns
A variety of models with different functions
Support optional laser range finder
2.Precautions:
- Regardless of whether the thermal riflescope is turned on or off, do not let the lens and eyepiece directly face high-intensity radiation sources such as the sun, lasers, and electric welding, otherwise the warranty will not be covered for damage. When the product is not in use, the lens cap should be covered in time.
- When the thermal riflescope is not in use, and during transportation, please place the thermal riflescope in a protective box to avoid damage.
- Please take out the battery when you do not use thermal riflescope for a long time.
- To wipe the thermal imaging lens, it needs to be wiped with alcohol wiping fluid
3. Additional options

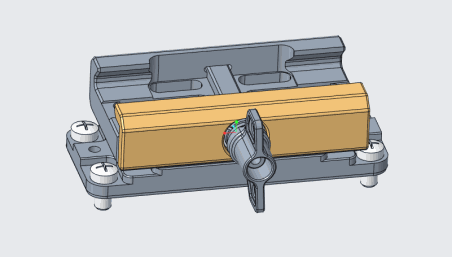

Support two type of shock mount

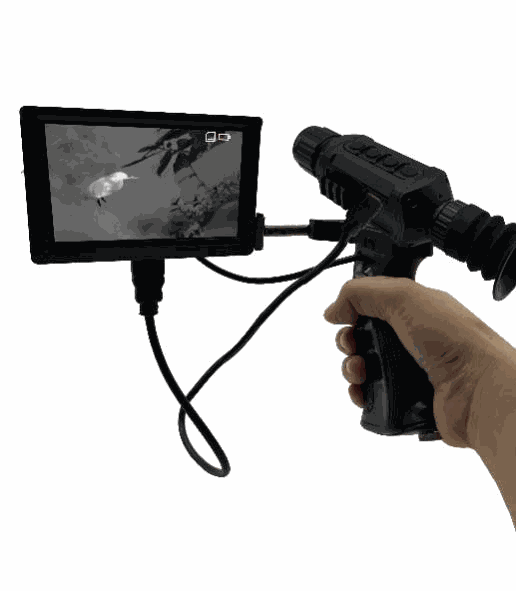

Support handheld 1080P 5 inch LCD

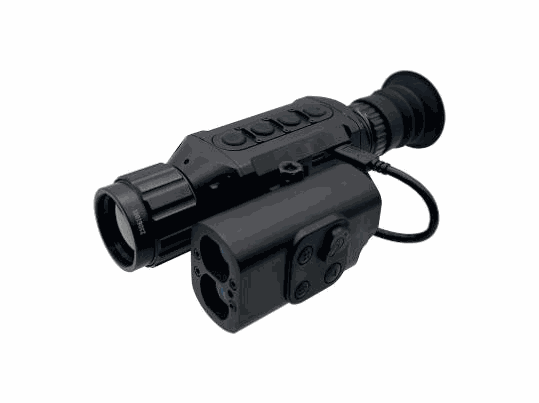

Support extra laser range finder
4. Image

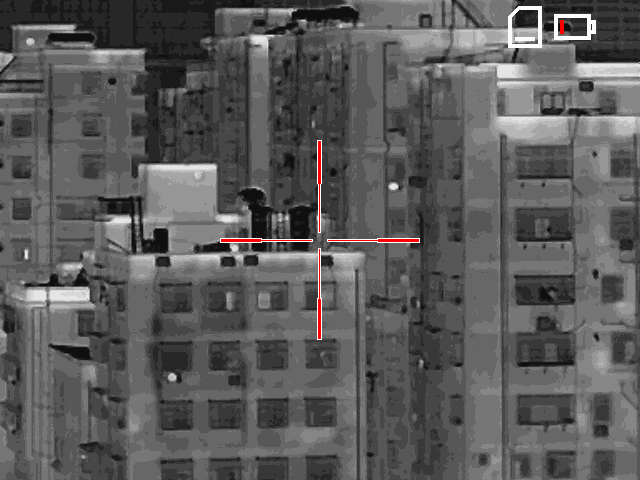

200 meters building

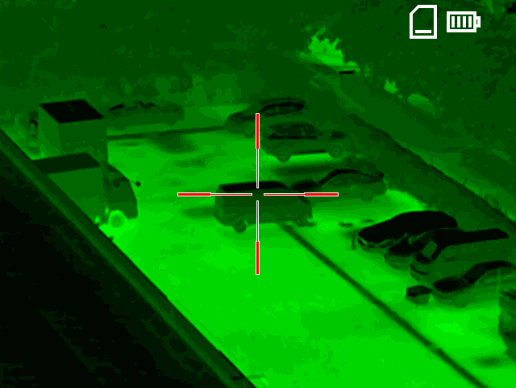

400 meters vehicle

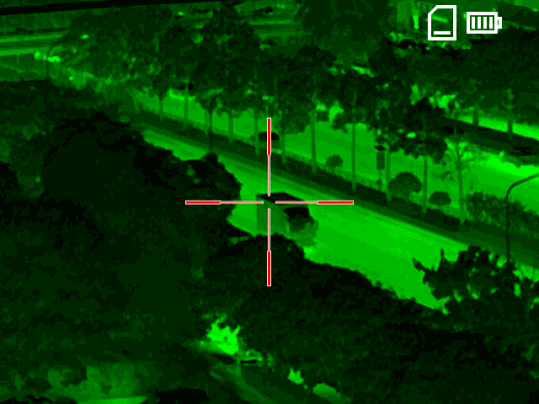

600 meters driving vehicle
