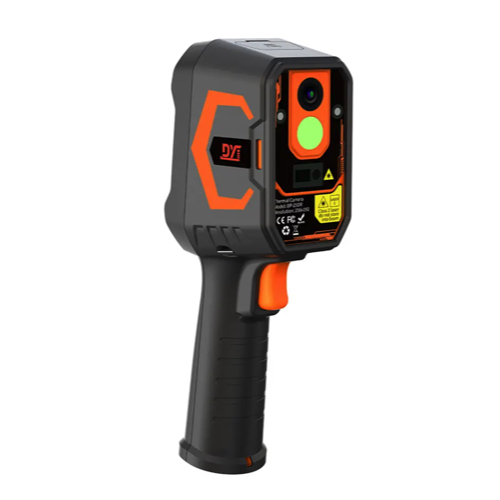

DYT DP-25DV Thermal Imaging Camera (256x192; -20°C~550℃)

IR resolution: 256x192

Spectral range: 8~14um

Pixel pitch: 12um

TisoView: Support multiple technologies such as DDE enhancement, denoising, and super resolution, making the image clearer with a resolution of up to 512x384

Refresh rate: 25Hz

NETD: 50mK @25℃

FOV: 42° x 56°

Lens: 3.2mm, F1.1

Measurement range: -20°C~550℃

Measurement accuracy: ±2°C or ±2% of reading, whichever is greater

Temperature measurement: Support max, min, center point and regional temperature measurement

Temperature compensation: Support distance compensation within 5 meters

Color palettes: Iron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Lava, Arctic, Coldest

Digital camera:

Resolution: 1080P

FOV: 55°×83°

Image display:

Screen size: 2.8 inch

Image mode: Outline fusion, overlay fusion, PIP, thermal image, visual image

General:

Language: Supports English, French, German, Spanish, Portuguese, Russian, Arabic, Japanese, Korean, Simplified and Traditional Chinese.

Interface: USB Type-C (supports charging and data transfer)

Laser pointer and measurement: No

Laser Distance Measurement: No

Led lamp: Support

Battery: 2600mAh

Working hours: Around 4 hours when fully charged

Operating temperature: -10°C~+60°C

Storage temperature: -40°C~+85°C

Capacity: 8G built-in memory, can store more than 10,000 pictures

Image storage mode: JPG

Video format: MP4
