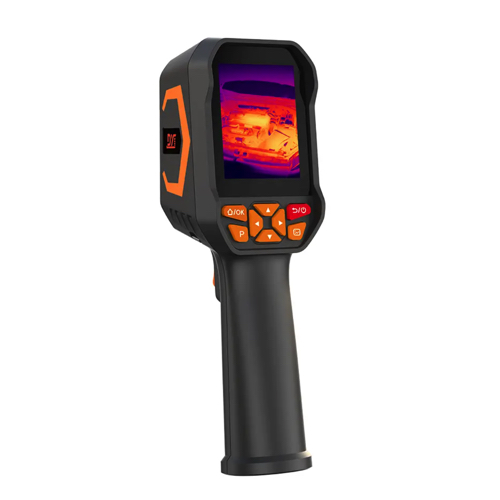

DYT DP-09D Thermal Camera (96x96; -20°C ~ 550℃)

Thermal imaging

IR resolution: 96x96

Spectral range: 8~14um

Pixel size: 17um

TisoView: Supports multiple technologies such as DDE enhancement, denoising, and super resolution, making the image clearer with a resolution of up to 180x240

Frame rate: 25 Hz

NETD: 60mK@25 ℃

FOV: 38° x 50°

Lens: 2.3mm, F1.1​

Measurement range: -20°C ~ 550℃

Measurement accuracy: ±2°C or ±2% of reading, whichever is greater

Temperature measurement: Support full-screen hotspot, cold spot, center point temperature measurement and regional temperature measurement

Temperature compensation: Support distance compensation within 2 meters

Color palette: Iron, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Lava, Arctic, Coldest

Image display

Screen size: 2.8 inch

Image mode: Thermal image

General

Language: Support English, French, German, Spanish, Russian, Portuguese， Arabic, Japanese, Korean and Chinese

Interface: USB Type-C (supports charging and data transfer)

Laser pointer: Support

Led: Support

Battery: 2600mAh lithium battery

Working hours: Approx. 8 hours, depends on specific environment

Operation temperature: -10°C~+60°C

Storage temperature: -40°C~+85°C

Storage

Capacity: 8G built-in memory, actual available memory around 6.19G, can store up to 20,000 pictures

Image format: JPG

Video format: MP4
