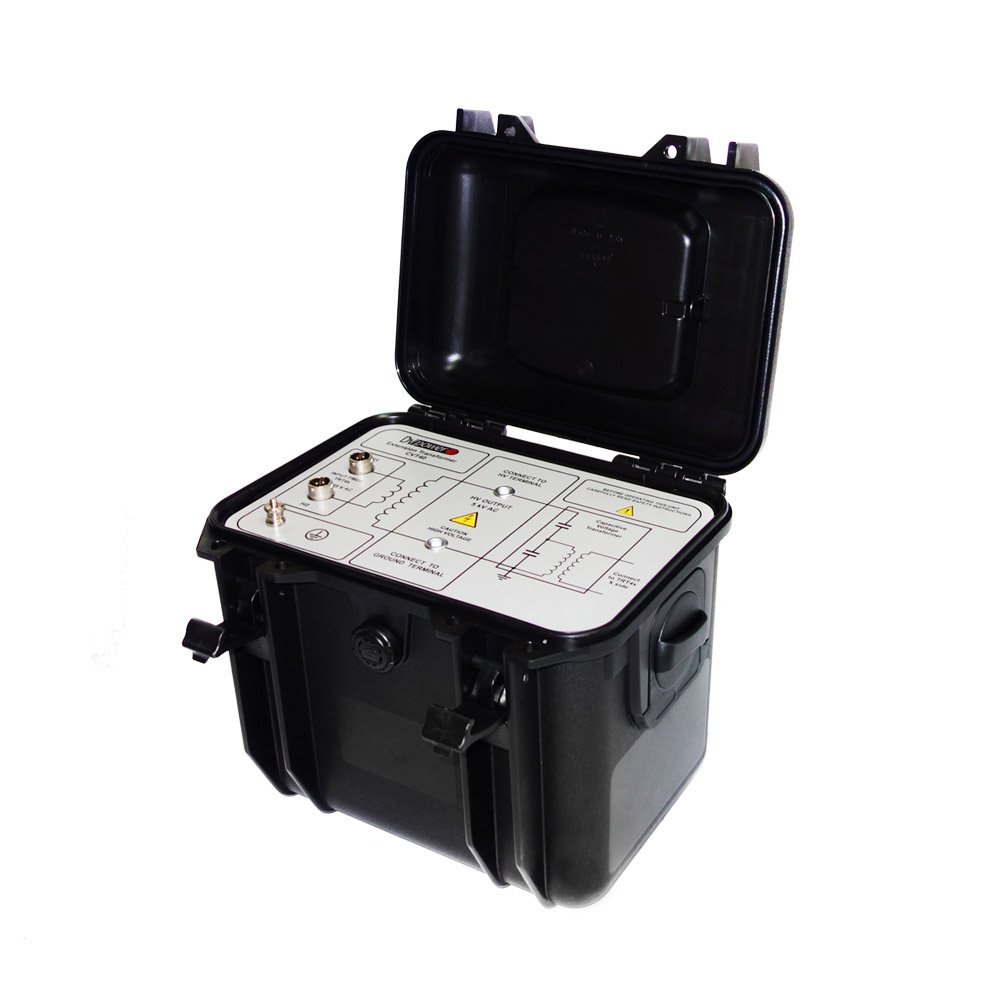

DV Power CVT20 Voltage Booster / Extension Transformer

Input Data:

Power supply: Only from associated TRT500 device, via provided connection cables

Maximum input voltage: 250 V AC

Frequency: 50/60 Hz

Maximum output voltage: 5 kV AC

Measurement:

Turns ratio range: 20:1

Turns ratio accuracy: ±0.5% of ratio

Maximum excitation capacity: 0.02 μF

Dimensions (W x H x D): 223 x 260 x 284 mm/ 8.78 x 10.24 x 11.18 in

Weight: 10 kg / 22 lbs

Operating temperature: -20 ºC – +55 ºC / -4 ºF – +131 ºF

Storage & transportation temperature: -40 ºC – +70ºC / -40 ºF – +158 ºF

Humidity: 0 – 95 % relative humidity, noncondensing
