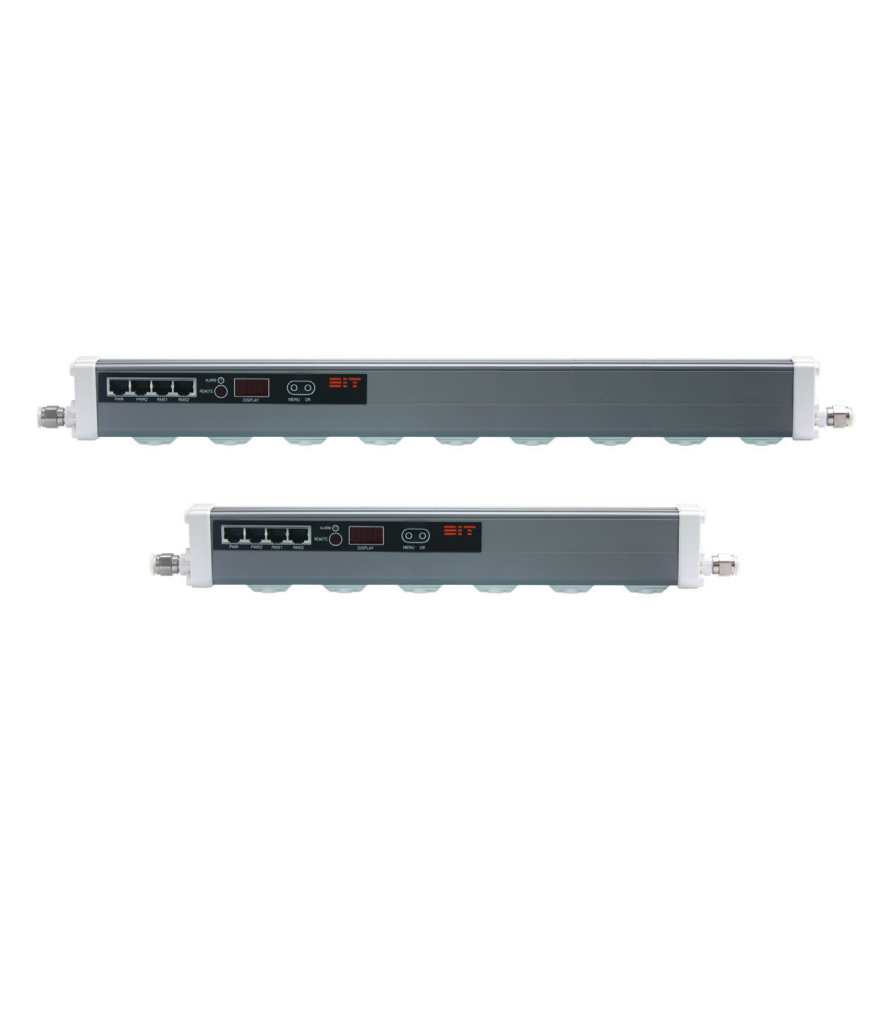

Ionizer type: Bar ionizer
Controller type: Standard type
Number of electrode cartridges: 11
Bar length: 622mm
Power supply voltage: 24VDC
Current consumption: 300mA
Power consumtion: 7W
Ion generation method: Corona discharge
Method of applying voltage: Pulsed AC
Emitter voltage: ±4.75...5.5kV
Output frequency: 0.1...60Hz
Ion balance (offset voltage): Under average ±30V
Effective de-ionizing distance: 200...2000mm
Material - electrode needle: Tungsten
Material - cover: Acrylonitrin butadien styren (ABS)
Air type: Air (Clean dry air)
Air operation pressure: 0...0.5MPa
Air port size: Used with OD 6mm tube
Function
Setting address, Setting emitter pin cleaning period, Setting frequency, Setting output voltage level, Setting password, Balance adjustment, Error indicator
Communication: RJ45
Mounting method: Bracket mounting
Electrical connection method: AC adapter without plug
Ambient and fluid temperature (with no icing): 0...50°C
Ambient humidity (with no condensation): 35...85%
Overall width: 622mm
Overall height: 59.6mm
Overall depth: 29mm
