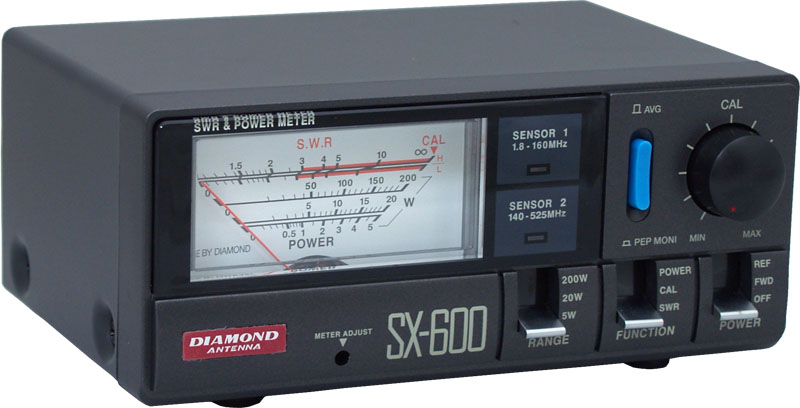

- The SX600 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.- Measurement function:Forward RF power,Reflected RF power,SWR,PEP monitor- Accuracy at fullscale: ±10%(F.S.)
- Illuminated meter- Switchable r.m.s. or peak power- Measures forward, reflected & VSWR power- Frequency Range MHz: 1.8 to 525MHz/S1(1.8 to 160MHz),S2(140 to 525MHz)-
Impedance: 50Ω - Power Display Rating: 5/20/200/1KW(HF)±10%
- Connector: SO-239
- Min. Power SWR Test: S1(1W); S2(4W)
- Dimensions WxHxD 154x62x102 (mm)
- Weight: 635g
