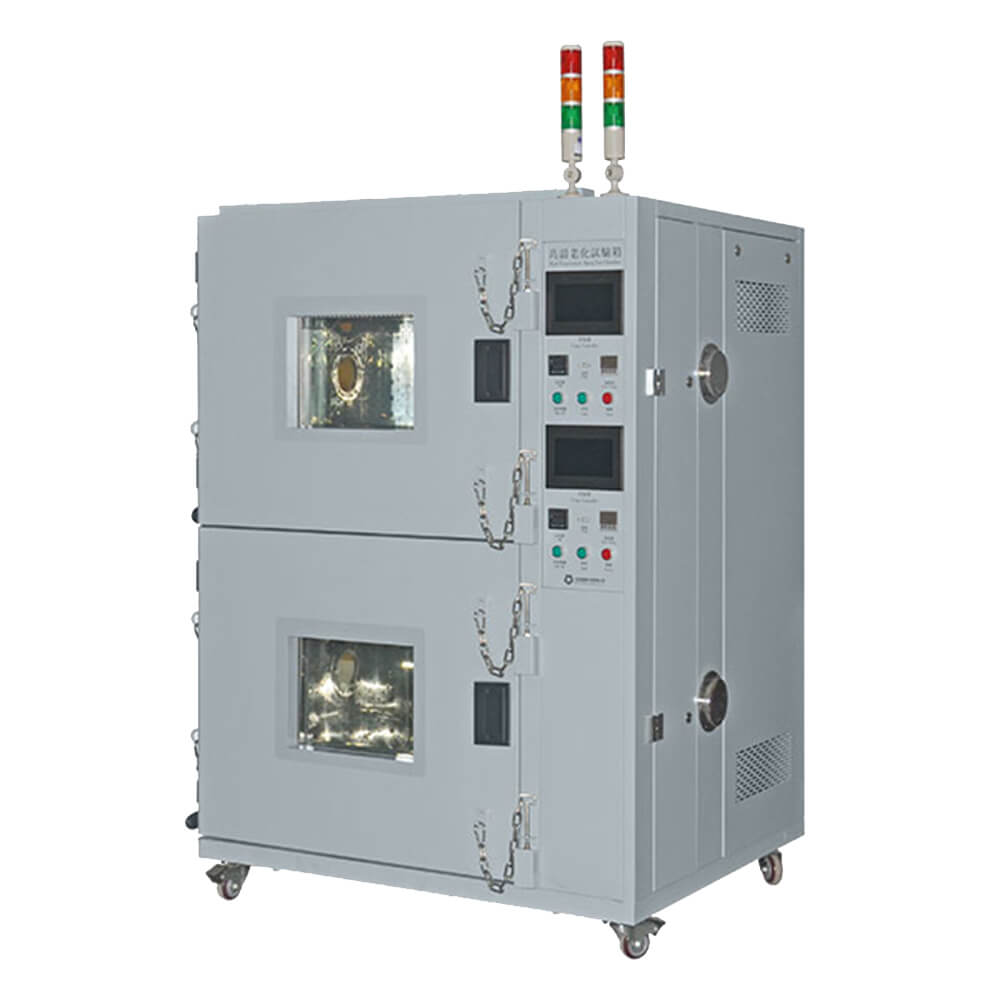

DGBell BTT-D2-360A Double-deck Burn-in Chamber (Temperature Aging Test) (10 ℃~150 ℃)

Single Cabinet Inner Dimension:W1000 X D600 X H600 MM

External Dimension: W1340*D1085*H1765mm

Structure Mode:An integral structure with upper and lower cabinets.

Temperature Range: Room temperature +10℃-+150℃

Temperature Fluctuation: ±0.3℃

Heating Time: RT+10～+100°C for about 10 minutes

Temperature Uniformity:≤±2℃ （No load, constant state)

Observation Window: Explosion-proof glass with explosion-proof membrane

Cooling Mode: Air cooling

Controlling Mode: Touch screen programmable control PLC, with USB interface, with RJ485 .interface can be connected to computer control, special network control software, convenient remote monitoring, data acquisition

Inner Chamber Material:1.0MM thick SUS304# mirror stainless steel, sprayed with Teflon insulation

External Chamber Material: 1.2 MM thick Galvanized sheet, dusting pained with high temperature plasticized coating.

Power Supply: AC380V 50HZ

Safety Protection: Automatic explosion-proof pressure relief device, explosion-proof chain, tri-color light alarm device, remote control, smoke exhaust device, fire extinguishing device, etc.

Cable Port: ¢100mm each opening one with soft silicone plug and stainless steel cover

Extension Function: Provide communication protocol, able to accompanied use with charge and discharge machine
