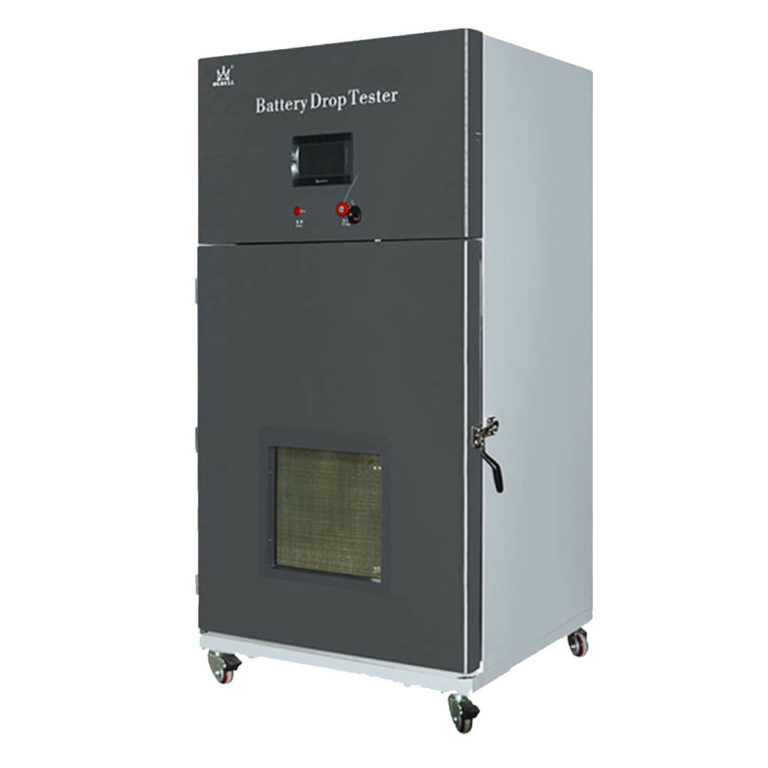

DGBell BE-8108 Battery Drop Test Chamber for Battery Safety Test (300 ～ 1500mm, 0 ～ 5kg)

Drop Height: 300～1500mm (Adjustable)

Testing Method:Free fall

Test Loading: 0～5kg

Specimen Max. Dimension: W200 x D200 x H200mm

Machine Dimension: W700 X D900 X H1800mm

Motor Power: 90W

Control Mode: PLC touch screen (7-inch touch screen) + Remote control

Internal Material: SUS 304# Stainless steel

External Material: 1.5mm thickness Cold plate

Falling Method: Pneumatic drop

Lifting Method: Electric

Power Supply: 220V 50Hz

Safety device: Fully enclosed explosion-proof device

Pressure: ＞0.3Mpa

Drop Panel Size: W600 x D700 x H10mm (solid steel), hardwood, cement board (optional)

Observation Window:390 X 360mm (20mm thickness tempered explosion-proof glass)

Data Output: Test data can be output by USB flash disk directly .

Safety Protection: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch

Options: Temperature acquisition system, voltage acquisition system, video monitoring system
