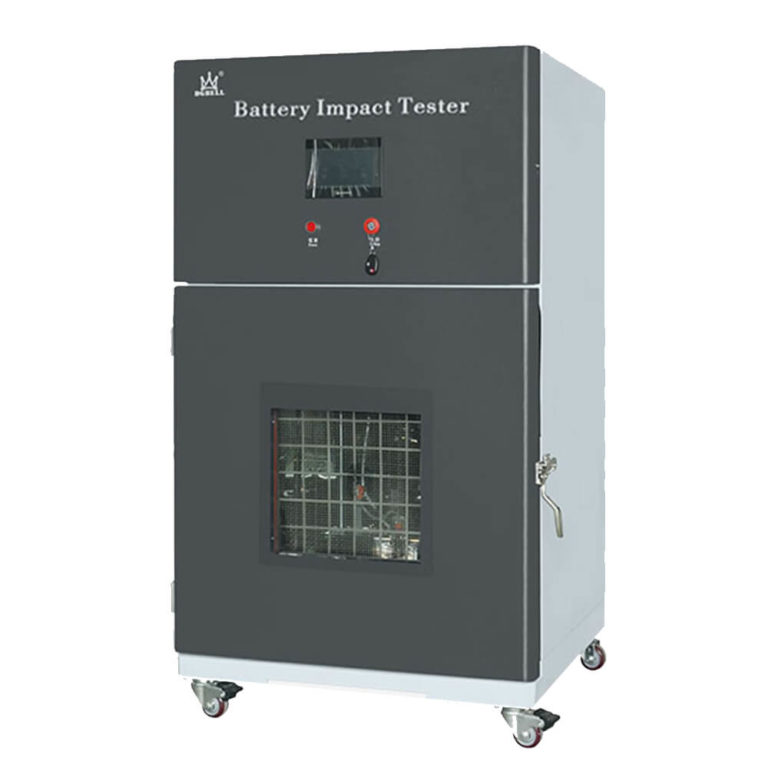

DGBell BE-8106 Heavy Impact Test chamber (9,1kg ± 0,1kg, 0 ~ 770mm)

Structure: All-in-one structure, the door uses explosion-proof lock and explosion-proof chain

Drop Ball Weight: 9.1kg±0.1kg

Dropping Height: 0~770mm（Adjustable)

Control Mode: PLC Touch Screen Control+ Remote Control

Crossing Bar Diameter: 15.8 mm

Inner Cabinet Dimension: W500 X D300 X H800mm

Effective Test Space: W300XD300XH300mm

Internal Material: 1.0mm thickness SUS 304# Stainless steel (reinforced). Total 80mm thickness together with external chamber.

External Material: 1.5mm thickness Cool-rolled plate

Air Vent: Diameter: 150mm, at the top of chamber back

Observation Window: 390 X 360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)

Lifting Mode: Electric

Top / Bottom Impact Surface: Steel Plate

Test Space: W300XD400XH200 mm

Overall Dimensions: W940XD780XH1620 mm

Power Supply: AC 220V / 2.0KW

Data Output: Test data can be output by USB flash disk directly .

Safety Protection: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch

Options: Temperature acquisition system, voltage acquisition system, video monitoring system
