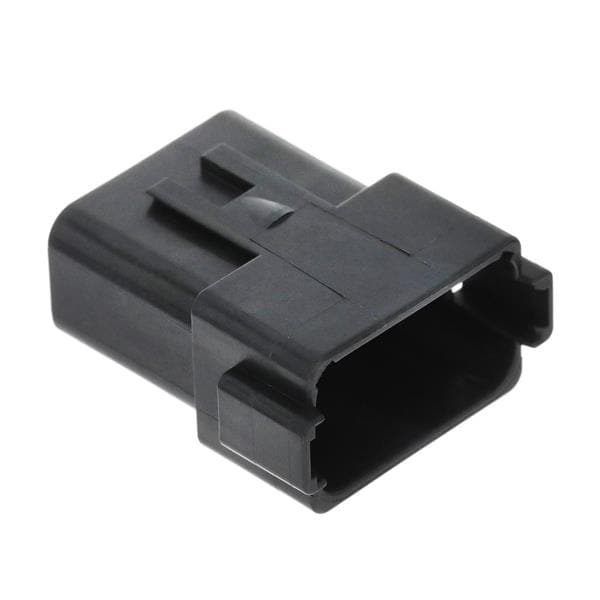

Color: Black
Pitch: 9.12 mm (0.359 in)
Width: 22.25 mm
Gender: Receptacle (Female)
Height: 22.25 mm
Length: 45.92 mm
Material: Plastic
Dimensions: 40.56 mm x 22.25 mm x 45.92 mm
Insulation: Insulated
Application: Wire to Wire
Row Spacing: 4.45 mm
Unit Weight: 17 g
Mating Gender: Plug
Contact Gender: Pin (Male)
Current Rating: 13 A
Housing Gender: Receptacle (Female)
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 14 AWG to 20 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Ingress Protection: IP68, IP6K9K
Mating Part Number: DT06-12SA
Number of Positions: 12 Position
Attachment Hole Diameter: 1.5 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
