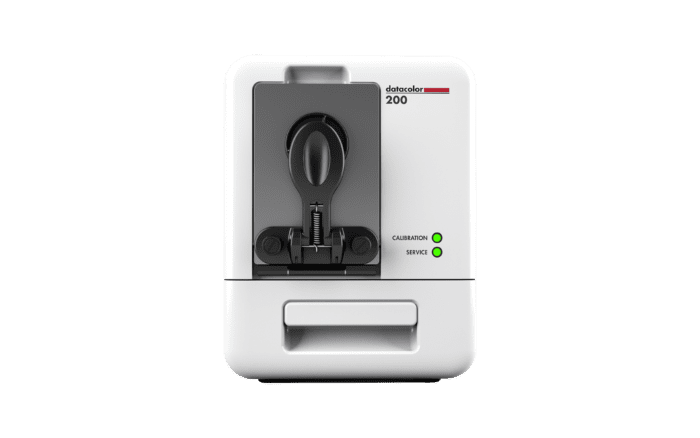

Instrument Type: Dual Beam d/8 spectrophotometer
Measurement Geometry: Diffuse illumination 8°viewing
Light Source: Pulsed Xenon filtered to approximate D65
Wavelength Range: 400 nm – 700 nm
Reporting interval: 10 nm
Photometric range: 0 to 200%
Spectral Analyzer: Dual 256 diode array
Wavelength Alignment Method: Via software alignment
20 read repeatability on white tile using double flash (CIELAB) (1): 0.05 CIELab dE* max on white ceramic tile
Inter-instrument agreement: reflectance measurements (CIELAB) (1, 2 & 3 ): 0.2 CIELab dE* avg of 12 BCRA tiles
Sample Temperature: N/A
IR Sensor Accuracy: N/A
Single Aperture Models: LAV (22 mm) SAV (9mm) USAV (6.5 mm)
Functional Operating Environment (2):
Physical Specifications:
Weight: 15 lbs 6.8 kg
Dimensions: 6.7″/17.01 cm (Width) X 8.5″/21.59″ cm (Height)
Power Requirements: 100-240 VAC; 50 to 60 Hz; 1A
Power Consumption: 1A
Statements of Note:: Comes complete with: Spectrophotometer with certificate of instrument performance, Declaration of conformity, Quick Start Guide, Secure USB cable, 6ft power cable, Accessory Drawer (with black trap, white calibration tile, green tile, USB memory Stick with user guide)
Recommended option: User Color Performance Monitoring Tool: Guardian
Additional Technical Specifications:
Specular Port: SCI/SCE for automatic gloss compensation
Data Interface: Secure USB or RS232 (RS232 Cable optional)
