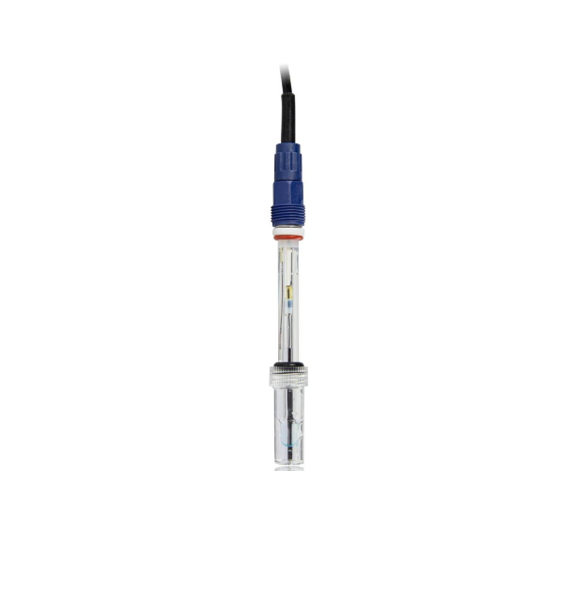

Measuring Object: pH Measuring Range: 0~14pH
Indicator Electrode: Low impedance cylindrical glass membrane
Reference System: Ag/AgCl reference electrode, double salt bridge, KCl gel
Working Pressure：
- Mediumand low temp environment: max. 0~6bar
- High temp environment: 0~3bar
Working Temp:
- Mediumand low temp environment: 0~80℃, continuous work
- High temp environment: 80~100℃, continuous work for less than 60 mins
Sample Flow Rate: 0.5 m/s ≥ flow velocity≥ 0.001 m/s
Zero (E0): pH 6.86 buffer solution: 6.86±0.3 pH
SLOP%: pH 4.01 pH 6.86 buffer solution＞95%
Dimension Standard: diameter 12mm / Length 120mm (customized)
Wire Length: 5 meters
Electrode Material: Glass + Dot shaped ceramic hole
Installation Dimension: Ant-itwist cap or PG13.5
Tail Lead: Standard Integral with thread (Optional split)
Temperature Unit : without standard (can be customized)
