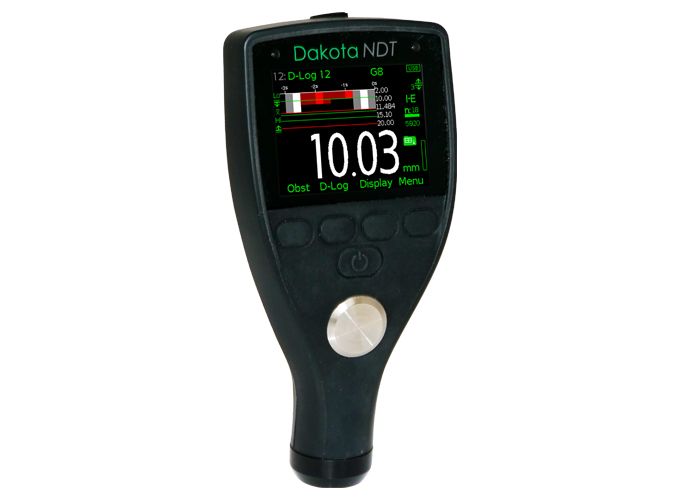

Dakota PCX8-DL Precision Thickness Gauge (IE:1.65 - 25.40mm; EE: 0.15 - 10.15mm)
Measurement Range
Interface Echo (IE): 1.65 - 25.40mm (0.065 - 1.00”)
Echo Echo (EE): 0.15 - 10.15mm (0.006 - 0.400”)
Plastic Mode (PLAS): 0.15 - 5.00mm (0.006 - 0.197”)
Measurement Accuracy
Interface Echo (IE): ±0.015mm (1.65-2.99mm); ±0.5%(3.00-25.4mm)
Plastic Mode (PLAS): ±0.015mm (0.15-2.99mm); ±0.5% (3.00-5.00mm)
Operating Temperature: -10 to 50°C (14 to 122°F)
Power Supply: 2 x AA batteries
Battery Life: Alkaline: 15 hours; Lithium: 28 hours
Gauge Weight: 210g (7.4oz) - including batteries; without transducer
Gauge Dimensions: 145 x 73 x 37mm (5.7 x 2.84 x 1.46”); without transducer
Packing List: Dakota PCX8-DL Ultrasonic Precision Thickness Gauge; ultrasonic couplant; 3 x screen protectors; wrist harness; 2 x AA batteries; plastic transit case; calibration certificate; USB cable; DakMaster™ Software; operating instructions
Option sensor not includes
Datasheet
Manual
SINGLE ELEMENT THICKNESS TRANSDUCERS - 'INTELLIGENT' | |||||||
The transducers listed below are 'intelligent' transducers with automatic transducer recognition | |||||||
Part Number | Type | Frequency | Diameter | Connector | Connection | ||
TXC15M0CM | Single Element - "Intelligent" | 15MHz | 1/4" | ODU | Side | ||
TXC20M0CM | Single Element - "Intelligent" | 20MHz | 1/4" | ODU | Side | ||
DELAY TIPS FOR SINGLE ELEMENT DELAY LINE TRANSDUCERS | |||||||
Part Number | Type | Diameter | Material | ||||
F-000-7102 | Delay Tip - Standard | 1/4" x 3/8" L | Acrylic | ||||
F-000-7103 | 1/4" x 1/2" L | Acrylic | |||||
X-633-0000 | 1/4" | Graphite | |||||
ULTRASONIC COUPLANT | |||||||
Part Number | Description | ||||||
T92015701 | Ultrasonic Couplant, 120ml/4fl oz | ||||||
T92015701-5 | Ultrasonic Couplant, 120ml/4fl oz, Pack of 5 Bottles | ||||||
T92024034-7 | Ultrasonic Couplant, 300ml (10fl oz) | ||||||
T92024034-8 | Ultrasonic Couplant; 500ml (17fl oz) | ||||||
CALIBRATION BLOCKS | |||||||
Part Number | Description | ||||||
X-000-0001 | Calibration Block: 5 Step; 0.1 - 0.5"; 4340 Steel | ||||||
X-000-0002 | Calibration Block: 4 Step; 0.25 - 1.0"; 4340 Steel | ||||||
X-000-0022 | Calibration Block: 5 Step; 2.5 - 12.5mm; 1018 Steel | ||||||
X-000-0021 | Calibration Block: 4 Step; 6.25 - 25mm; 1018 Steel | ||||||
X-000-0005 | Calibration Block Carry Case | ||||||
