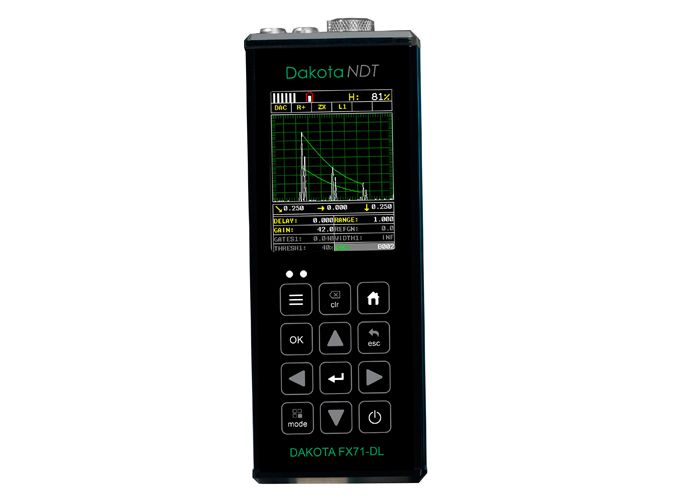

Dakota FX71-DL Flaw Detector (PE: 0.63 - 914.4mm; EE: 2.54 - 101.6mm)

DAKOTANDT FX GAUGES

Z-221-0005

Dakota FX71-DL Hand-Held Flaw Detector (DFX-7+)

Z-251-0003

Dakota FX81-DL Flaw Detector (DFX-8+)

SPARES / ACCESSORIES - FX71

Part Number

Description

F-149-0001

FX71 Gauge Instrument Case: Nylon

A-149-6002

FX71 Gauge Instrument Case: Rubber

A-100-6003

FX71 Gauge Plastic Transit Case

N-003-0330

DakotaNDT Full Waveform Capture Corrosion G Precision Thickness Gauge

SPARES / ACCESSORIES - FX81

Part Number

Description

F-250-0006

Instrument Case (with straps) for FX81 & BT2-DL

A-250-6002

FX81 Gauge Plastic Transit Case

B-040-3200

Lithium Ion Battery Pack

N-250-0001

Power Adaptor, 12 volts @ 2 Amps with 1.8m (6’) Cable

N-506-0060

Universal Power Cord

N-110-0470

3m (10’) Lemo 1 5pin to BNC Analog Output Cable

N-110-0410

3m (10’) Lemo 1 5pin to DB9F Serial Output Cable

N-306-0416

Universal Cable (5Pin Lemo 1-BNC, 6’ DB9 & 2 6’ Alarm Out)

SINGLE TRANSDUCER CABLES - FX71

Part Number

Description

N-104-0020

Transducer Cable: 1.2m (4') Single Lemo 00 to Microdot

N-104-0070

Transducer Cable: 1.2m (4') Single Lemo 00 to BNC

N-104-0000

Transducer Cable: 1.2m (4') Single Lemo 00 to Lemo 00 - Prove up transducer

SINGLE TRANSDUCER CABLES - FX81

Part Number

Description

N-106-0020

Transducer Cable: 1.8m (6') Single Lemo 00 to Microdot

N-106-0100

Transducer Cable: 1.8m (6') Single Lemo 00 to BNC

DUAL TRANSDUCER CABLES - FX71

Part Number

Description

N-204-0020

Transducer Cable: 1.2m (4') Dual Lemo to Microdot

N-204-0000

Transducer Cable: 1.2m (4') Dual Lemo to Lemo

SINGLE ELEMENT CONTACT TRANSDUCERS - HIGH WEAR

Part Number

Type

Frequency

Diameter

Connector

Connection

T-8040-0868

T-8070-0868

1MHz

1"

BNC

n/a

T-8040-1878

2.25MHz

1/2"

BNC

n/a

T-8070-1878

2.25MHz

1"

BNC

n/a

T-8040-2878

5MHz

1/2"

BNC

n/a

T-8070-2878

5MHz

1"

BNC

n/a

SINGLE ELEMENT CONTACT TRANSDUCERS - FINGER TIP

Part Number

Type

Frequency

Diameter

Connector

Connection

T-4023-1855

Single Element - Finger Tip Contact

2.25MHz

1/4"

Microdot

Side

T-4033-1855

2.25MHz

3/8"

Microdot

Side

T-4043-1855

2.25MHz

1/2"

Microdot

Side

T-4023-2855

5MHz

1/4"

Microdot

Side

T-4033-2855

5MHz

3/8"

Microdot

Side

T-4043-2855

5MHz

1/2"

Microdot

Side

T-4023-4855

10MHz

1/4"

Microdot

Side

T-4033-4855

10MHz

3/8"

Microdot

Side

T-4043-4855

10MHz

1/2"

Microdot

Side

T-5903-2875

Single Element - Finger Tip - Slim Line

5MHz

1/8"

Microdot

Top

T-5903-4875

10MHz

1/8"

Microdot

Top

ANGULAR TRANSDUCERS (REǪUIRES REPLACEMENT WEDGE - ORDERED SEPARATELY)

STANDARD SHEAR WAVE TRANSDUCERS (SS)

Part Number

Type

Frequency

Size

T-8044-1848

Standard Shear Wave - High-Gain

2.25MHz

1/2" x 1/2"

T-8054-1848

2.25MHz

5/8" x 5/8"

T-8044-2848

5MHz

1/2" x 1/2"

T-8054-2848

5MHz

5/8" x 5/8"

Part Number

Type

Angle

Size

X-004-0014

Standard Wedge for
Standard Shear Wave Transducers

45°

1/2" x 1/2"

X-004-0020

45°

5/8" x 5/8"

X-004-0015

60°

1/2" x 1/2"

X-004-0021

60°

5/8" x 5/8"

X-004-0016

70°

1/2" x 1/2"

X-004-0022

70°

5/8" x 5/8"

Part Number

Type

Angle

Size

X-004-0023

Snail (AWS Type) Wedge for Standard Shear Wave Transducers

45°

5/8" x 5/8"

X-004-0024

60°

5/8" x 5/8"

X-004-0025

70°

5/8" x 5/8"

ǪUICK CHANGE SHEAR WAVE TRANSDUCERS (ǪC)

Part Number

Type

Frequency

Diameter

Connector

T-5035-1845

Ǫuick Change Threaded Shear Wave - High-Gain

2.25MHz

3/8"

Microdot

T-5045-1845

2.25MHz

1/2"

Microdot

T-5025-2845

5MHz

1/4"

Microdot

T-5035-2845

5MHz

3/8"

Microdot

T-5045-2845

5MHz

1/2"

Microdot

T-5025-4845

10MHz

1/4"

Microdot

Part Number

Type

Angle

Size

X-004-0038

Standard Ǫuick Change Wedge for Ǫuick Change Shear Wave Transducers

45°

1/4"

X-004-0041

45°

3/8"

X-004-0044

45°

1/2"

X-004-0039

60°

1/4"

X-004-0042

60°

3/8"

X-004-0045

60°

1/2"

X-004-0040

70°

1/4"

X-004-0043

70°

3/8"

X-004-0046

70°

1/2"

INTEGRAL WELD INSPECTION TRANSDUCERS - 10mm Diameter - Single

Part Number

Type

Size

Connector

TF4M0045

Transducer: 4MHz Standard Shear Wave; 45 Degree

10mm Dia

Lemo 00

TF4M0060

Transducer: 4MHz Standard Shear Wave; 60 Degree

10mm Dia

Lemo 00

TF4M0070

Transducer: 4MHz Standard Shear Wave; 70 Degree

10mm Dia

Lemo 00

N-104-0000

Transducer Cable: 1.2m (4') Single Lemo 00 to Lemo 00

Lemo 01

TL-31897-60

Transducer Cable: 60" (5') Lemo 00 to Lemo 00

Lemo 00

ULTRASONIC COUPLANT

Part Number

Description

T92015701

Ultrasonic Couplant, 120ml/4fl oz

T92015701-5

Ultrasonic Couplant, 120ml/4fl oz, Pack of 5 Bottles

T92024034-7

DakotaNDT Full Waveform Capture Corrosion G Precision Thickness Gauge

T92024034-8

Ultrasonic Couplant; 500ml (17fl oz)

T92024034-9

Ultrasonic Couplant - Hi-Temp (370°C / 700°F); 60ml (2fl oz)

T92024034-10

Ultrasonic Couplant - Hi-Temp (370°C / 700°F); 60ml (2fl oz), Pack of 2
