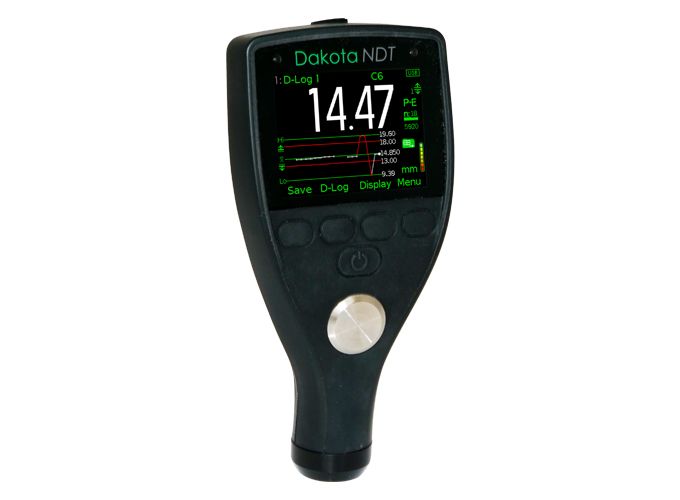

Dakota CX8-DL Material Thickness Gauge (PE: 0.63 - 500mm; EE: 2.54 - 20.00mm; VM: 1250-10000m/s)
Measurement Range:
Pulse Echo (PE): 0.63 - 500mm (0.025 - 19.999”)
Echo Echo ThruPaint™ (EE): 2.54 - 20.00mm (0.100-0.787”)
Velocity Mode (VM): 1,250-10,000m/s (0.0492 - 0.3937in/μs)
Measurement Accuracy
Pulse Echo (PE):
±0.05mm (0.63-9.99mm)
±0.5% (10.00-500.00mm)
±0.004” (0.025-0.393”)
±0.5% (0.394-20.00”)
Echo Echo ThruPaint™ (EE):
±0.05mm (2.54-9.99mm)
±0.5% (10.00-20.00mm)
±0.004” (0.100-0.393”)
±0.5% (0.394-0.787”)
Operating Temperature: -10 to 50°C (14 to 122°F)
Power Supply: 2 x AA batteries
Battery Life3: Alkaline: 15 hours Lithium: 28 hours
Gauge Weight: 210g (7.4oz) - including batteries. without transducer
Gauge Dimensions: 145 x 73 x 37mm (5.7 x 2.84 x 1.46”). without transducer
Packing List: Dakota CX8-DL Ultrasonic Material Thickness Gauge, 5MHz ¼” HD right , ultrasonic couplant, plastic transit case, 3 x screen protectors, wrist harness, 2 x AA batteries, operating instructions, calibration certificate, DakMaster® software CD & USB cable
Option sensor not includes
Datasheet
DUAL ELEMENT THICKNESS TRANSDUCERS - 'INTELLIGENT' - COMPATIBLE WITH ALL CX GAUGES | |||||
The transducers listed below are 'intelligent' transducers with automatic transducer recognition | |||||
Part Number | Type | Frequency | Diameter | Connector | Connection |
TXC5M00CP-4 | Dual Element - 'Intelligent' - Standard | 5MHz | 1/4" | ODU | Side |
DUAL ELEMENT THICKNESS TRANSDUCERS - 'INTELLIGENT' - COMPATIBLE WITH ALL CX4 G CX8 ONLY | |||||
The transducers listed below are 'intelligent' transducers with automatic transducer recognition | |||||
Part Number | Type | Frequency | Diameter | Connector | Connection |
TXC1M00EP-2 | Dual Element - 'Intelligent' - Standard | 1MHz | 1/2" | ODU | Side |
TXC5M00CP-10 | Dual Element - 'Intelligent' - Hi-Damped | 5MHz | 1/4" | ODU | Side |
TXC5M00EP-10 | Dual Element - 'Intelligent' - Hi-Damped | 5MHz | 1/2" | ODU | Side |
TXC7M50BP-3 | Dual Element - 'Intelligent' - Hi-Damped | 7.5MHz | 3/16" | ODU | Side |
TXC7M50CP-4 | Dual Element - 'Intelligent' - Extra Resolution | 7.5MHz | 1/4" | ODU | Side |
Part Number | Description | ||||
T92015701 | Ultrasonic Couplant, 120ml/4fl oz | ||||
T92015701-5 | Ultrasonic Couplant, 120ml/4fl oz, Pack of 5 Bottles | ||||
T92024034-7 | Ultrasonic Couplant, 300ml (10fl oz) | ||||
T92024034-8 | Ultrasonic Couplant; 500ml (17fl oz) | ||||
Part Number | Description | ||||
X-000-0001 | Calibration Block: 5 Step; 0.1 - 0.5"; 4340 Steel | ||||
X-000-0002 | Calibration Block: 4 Step; 0.25 - 1.0"; 4340 Steel | ||||
X-000-0022 | Calibration Block: 5 Step; 2.5 - 12.5mm; 1018 Steel | ||||
X-000-0021 | Calibration Block: 4 Step; 6.25 - 25mm; 1018 Steel | ||||
X-000-0005 | Calibration Block Carry Case | ||||
Part Number | Description | ||||
F-000-7001 | Bell shaped Spring Loaded Probe Holder (V-Block) – Dual Transducer - Tube Inspection | ||||
PCX8-DL | PCX8-DL Ultrasonic Precision Thickness Gauge | ||||
Part Number | Type | Frequency | Diameter | Connector | Connection |
TXC15M0CM | Single Element - "Intelligent" | 15MHz | 1/4" | ODU | Side |
TXC20M0CM | Single Element - "Intelligent" | 20MHz | 1/4" | ODU | Side |
Part Number | Type | Diameter | Material | ||
F-000-7102 | Delay Tip - Standard | 1/4" x 3/8" L | Acrylic | ||
F-000-7103 | 1/4" x 1/2" L | Acrylic | |||
X-633-0000 | 1/4" | Graphite | |||
Part Number | Description | ||||
T92015701 | Ultrasonic Couplant, 120ml/4fl oz | ||||
T92015701-5 | Ultrasonic Couplant, 120ml/4fl oz, Pack of 5 Bottles | ||||
T92024034-7 | Ultrasonic Couplant, 300ml (10fl oz) | ||||
T92024034-8 | Ultrasonic Couplant; 500ml (17fl oz) | ||||
Part Number | Description | ||||
X-000-0001 | Calibration Block: 5 Step; 0.1 - 0.5"; 4340 Steel | ||||
X-000-0002 | Calibration Block: 4 Step; 0.25 - 1.0"; 4340 Steel | ||||
X-000-0022 | Calibration Block: 5 Step; 2.5 - 12.5mm; 1018 Steel | ||||
X-000-0021 | Calibration Block: 4 Step; 6.25 - 25mm; 1018 Steel | ||||
X-000-0005 | Calibration Block Carry Case | ||||
