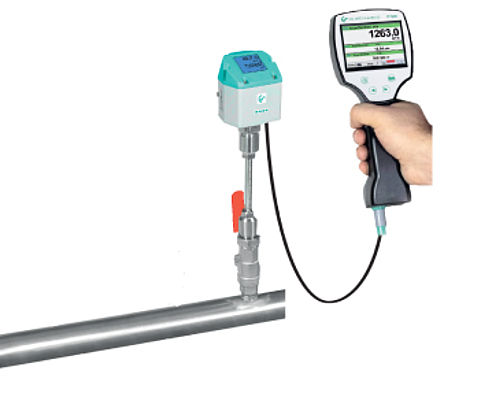

The portable handheld PI 500 is a hand held instrument for all pneumatic and pneumatic applications in the industry:
Flow measurement
Pressure / vacuum measurement
Temperature
Measure moisture / dew point
The measured values can be transferred to the computer using the USB stick.
The following sensors can be connected to the PI 500's free sensor input:
Pressure sensors
Flow sensor: VA500 / VA520
Temperature sensor Pt100, Pt 1000 / 4...20mA
FA510 / FA515 dew point sensor
The third sensor of Opitonal with the following signals: 0 ... 1/10 V, 0/4 ... 20 mA, Pt 100, Pt 1000, pulse, Modbus.
3.5 "color screen -Touchpanel TFT transmissive, graphic, curve, statistics
USB interface
Power supply for sensor
Output voltage: 24 VDC ± 10%
Output current: 120 mA continuous operation
Rechargeable Li-Ion battery for charging period. 4 hours
PI 500 operation:> 4h depending on the current consumption of the external sensor
Power supply: 100 - 240 VAC / 50 - 60 Hz, 12VDC - 1A
Dimensions: 82 x 96 x 245 mm
Material: PC / ABS plastic
Weight: 450 g
Operating Temperature: -20 ... 70 ° C
0 ... 50 ° C ambient temperature
Storage temperature: -20 to +70 o C
Memory size: 2 GB standard SD card, optional up to 4 GB
