Measured value: Temperature, Relative humidity, Counted values (dew point…)
Temperature sensor:
Measuring range: -30 to +125 °C
Accuracy: ±0.4 °C
Resolution: 0.1 °C
Humidity sensor:
Measuring range: 0 to 100 % RH
Accurac: ±2.5 % RH from 5 to 95 % at 23 °C
Resolution: 0.1% RH
Dew point:
Measuring range: -60 to +80 °C
Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution: 0.1 °C
Operating temperature: -30 to +80 °C
Channels: internal temperature and humidity sensor
Counted values: dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output: RS485
Range of humidity sensor temperature compensation: all temperature range
Available temperature units: degrees Celsius, degrees Fahrenheit
Power: 9-30 Vdc
Protection class: IP65 electronics; IP40 sensors
Configuration of output: user adjustable from PC; measured range + value
Dimensions: 88.5 x 94 x 39.5 mm; stem length: 700 mm
Weight: approx. 580 g
Included in delivery:

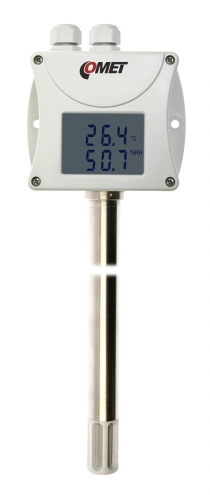

T3417
Instruction Manual
Traceable Calibration Certificate
FREE software TSensor for Configuring of the Transmitter
