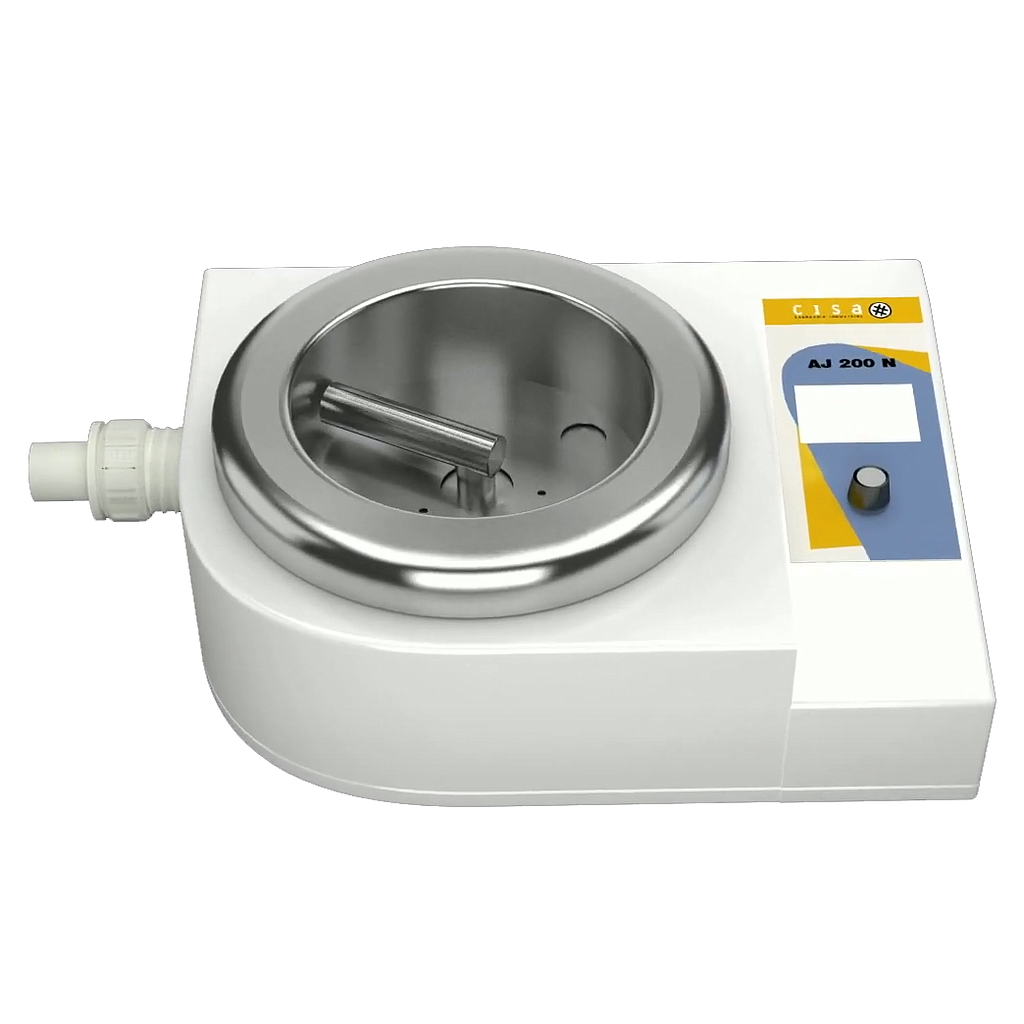

CISA TZAJ200N Digital Sieve Shaker (5 μm - 2 mm)

Type of equipment: Air Jet

Type of sieving: Dry

Application: Granulometric separation

Maximum weight of sample: 250 g. (Depending on the characteristics of the product)

Range of sieving: 5 μm to 2 mm

Particle motion: Pull by air flow

Dynamic of sieving: Air Flow

Maximum vibration amplitude: 10 KPa. Digital visualization of depression with different units of measure (0 -10 KPa, 0 - 1,5 psi, 0 - 100 mbar)

Time of test: From 1 to 99 minuts

Rotational speed of diffuser: From 1 to 100 RPM

Programming: 10 configurable programs

Maximum number of sieves: 1 (Ø 200 x 10/50 mm high) or 4 with the Ø 75 adapter kit (optional)

Electrical connection: Single phase with protective earth

Voltage: 125/230 V, 50/60 Hz

Power: 20 W (without vacuum cleaner connection)

Maximum power of vacuum cleaner: 2200 W

Dimensions and Weight: 455 x 355 x 185 mm, 15 kg

See the datasheet to choose suitable options
