Chroma 11025 LCR Meter | EMIN.CO.ID

LCR Meter
Chroma 11025 LCR Meter

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

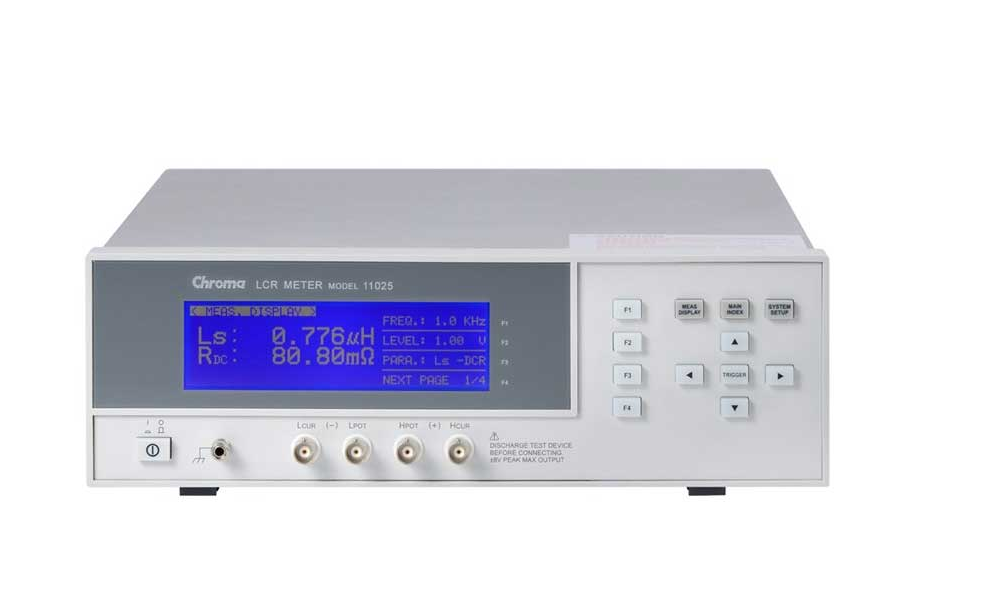

Product image

Chroma 11025 LCR Meter

ManufacturerCHROMA(View more products from this manufacturer)

Model11025

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

0.1% basic accuracy
Transformer test parameters (11025), Turns Ratio, DCR, Mutual Inductance
0Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz test frequencies
21ms measurement time (≧100Hz)
Agilent 4263B LCR Meter commands compatible
4 different output resistance modes selectable for non-linear inductor and capacitor measuring
High resolution in low impedance(0.01mΩ) and high accuracy 0.3% till 100mΩ range
Adjustable DC bias current up to 200mA (constant 25Ω) (11025)
1320 Bias Current Source directly control capability
0.01mΩ ~ 99.99MΩ wide measurement range (4 1/2 digits)
Dual frequency function (11022 option) for automatic production
BIAS comparator function
Comparator function and 8/99 bin-sorting function
Pass/fail judge result for automatic production
Handler interface trigger edge (rising/falling) programmable
Test signal level monitor function
Standard GPIB (IEEE-488) and handler interface, option RS 232 I/F
Open/short zeroing, load correction
LabView^® Driver

Download, Catalog
