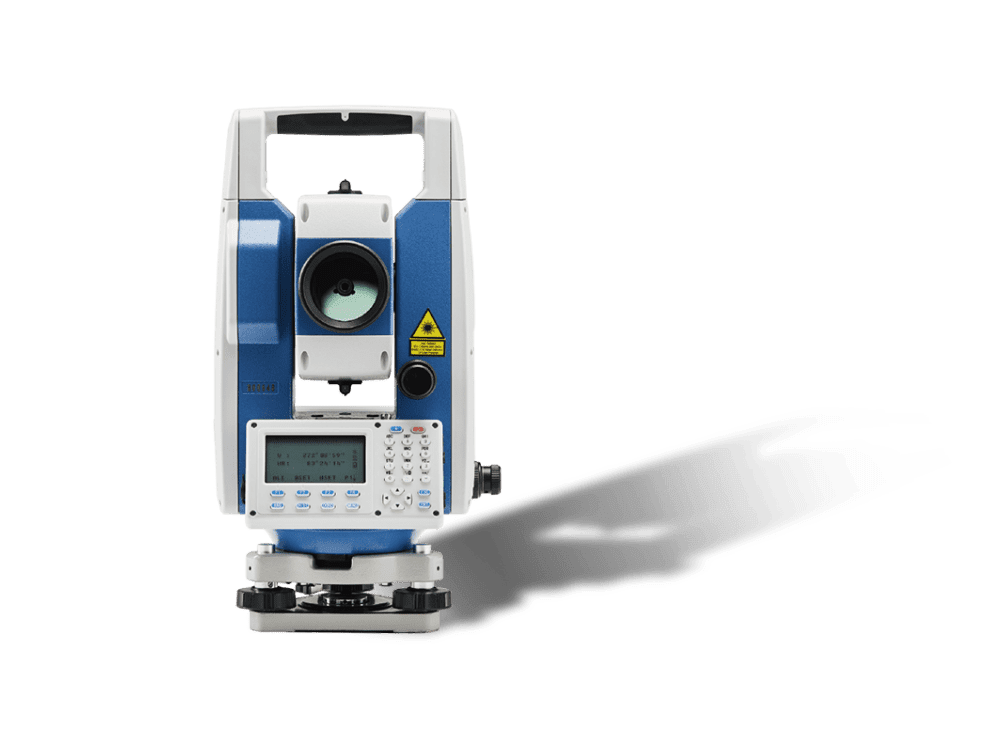

CHCNAV CTS-112R4 Total Station (0.650~0.690μm)

Distance measurement

Laser output: Prism: Class 2; Reflective sheet: Class 2; Non-prism: Class 3R

Distance measurement: Prism:5000 m; Reflective sheet: 1000 m; Non-prism: 1000 m

Accuracy: Prism:2 mm + 2 ppm; Reflective sheet: 3 mm + 2 ppm; Non-prism: 3 mm + 2 ppm

Measuring time: Prism fine: 0.3 s; Prism tracking: 0.1 s

Laser type: Red visible laser

Carrier: 0.650~0.690μm

EDM type: Coaxial

Resolution: 0.1 mm

Angle measurement

Diameter: 79 mm

Minimum readout: 0.1”/1”/5”/10” optional

Accuracy: 2”

Detection method: Horizontal:Dual/ Vertical: Dual

Telescope

Image: Erect

Tube length: 154 mm

Objective lens effective: For telescoping: 45 mm

aperture: For measuring: 50 mm

Magnification: 30

Field of view: 1°30’

Minimum focus distance: 1.4m

Resolving power: 3"

Reticle illumination: 4 brightness levels

Auto compensator

System: Dual axis photoelectric detection

Working range: ± 3′

Accuracy: 1′′

Laser plummet

Accuracy: 1.5 mm at 1.5 m instrument height

Laser spot size: 2.5 mm

Display:

Type: LCD.6 lines digital screen

Keyboard: Alphanumeric. 28 keys with backlight

Control panel: Double

Screen size: 2.8 inch

Battery

Battery type: Rechargeable lithium battery

Battery voltage: DC7.4 V 3.100 mAh

Operating time: Continuousdistance/angle: 8 hours; Continuousangle-only: 16 hours

Charging time: About 3 hours

Environment

Operating temperature: -20°C to +50°C (-4°F to122°F)

Dust and water proof: IP55

Size and weight: 160 x 150 x 330 mm (6.3 x 5.9 x 13.0 in)/ 5.2 kg

Datasheet
