Manuafacturer: Chauvin Arnoux
Model : PAC 12
Item: P01120072
Warranty : 12 month
- Input
+ Range: 0.2 A - 60 A đỉnh; 0.4 A - 60 A DC; 0.5 A - 600 A peak ; 0.5 A - 600 A DC
+ AC: yes
+ DC : yes
- Output / Connections
+ Current:
+ Voltage: 600 mV peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 A / 10 mV; 1 A / 1 mV
+ Automatic DC zero: yes
+ Bandwidth (frequency in Hz): DC - 10kHz
+ Typical accuracy: ≤ 1.5%; ≤ 2%
datasheet
user guider
catalog vietnamese
catalog english

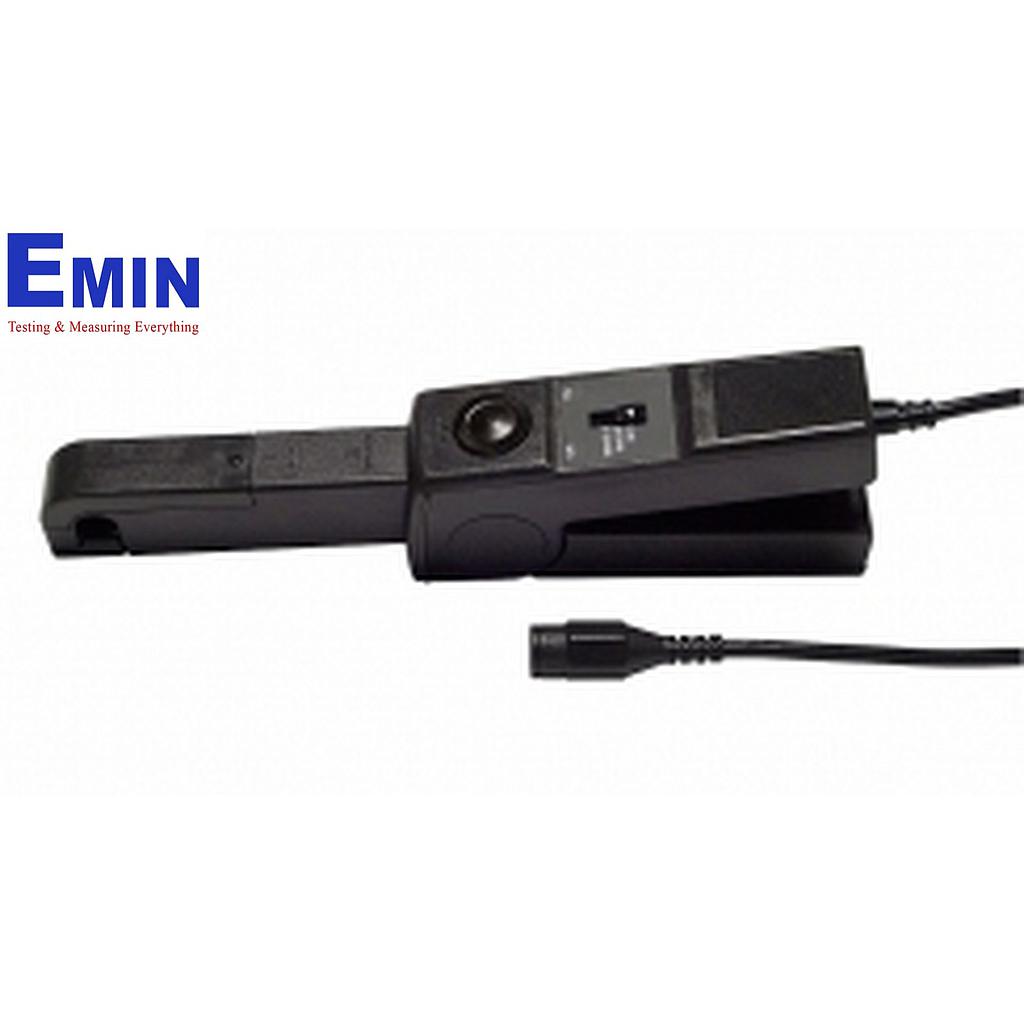

The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.
2 forms are proposed to clamp cables up to 30 mm or 42 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
When used with an oscilloscope, this isolated current sensor has 2 sensitivities and allows you to view currents with a bandwidth of up to 10 kHz and peak current up to 600 A DC or peak.
It is equipped with a a simplified ZeroDC adjustment system and a deactivatable automatic standby function.
Main features of the PAC12 clamp:
