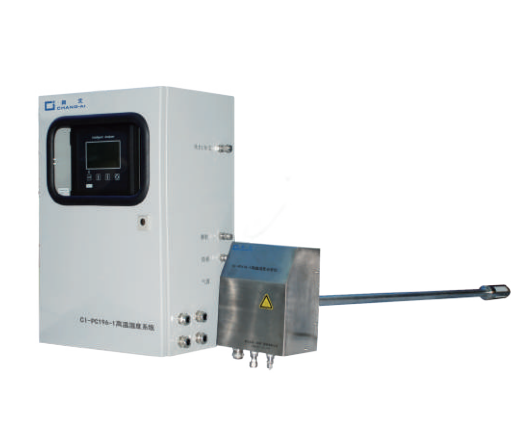

Chang AI CI-PC196-1 High temperature and humidity system (O2:0~25.00%,H2O:0~40.00%)

Sensor: Ion flow humidity sensor

Measurement range: O2:0~25.00%,H2O:0~40.00%

Measurement accuracy:

0~1% O2 ±3%FS

1~25% O2 ±3%R

0~40.00% H2O ±2%FS

Repeatability:

0~1% O2 ±1.5%FS

1~25% O2 ±1.5%R

0~40.00% H2O ±1%FS

Stability:

0~1% O2 ±1.5%FS/7d

1~25% O2 ±1.5%R/7d

0~40.00% H2O ±1%FS/7d

Response time: T90≤30s(Fully Preheated)

Power supply: 85~264VAC,50/60Hz

System power consumption: Not greater than 30VA

Communication: RS485 (standard)/RS232 (optional)

Sensor life: Greater than 2 years (normal use)

System life Greater than 5 years (normal use)

System usage ambienttemperature: -10~50°C

Probe ambient temperature: 0~500°C

Measurement method: ejection

System cabinet installation: Wall-mounted

System cabinet installation dimensions: L×W=560mm×360mm

Probe installation: flange installation
