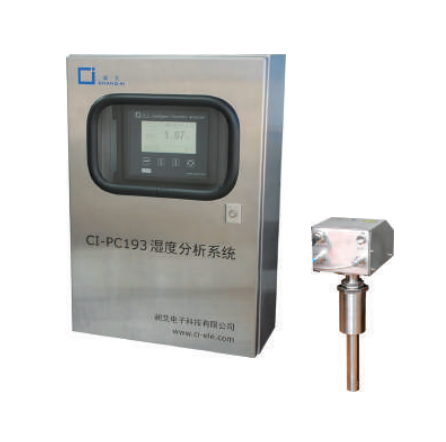

Chang AI CI-PC193 Food processing high temperature and humidity system (0~99.99% H2O)

Measuring range: 0~99.99% H2O

Measurement accuracy: ±2%FS

Repeatability: ±1% FS

Stability: ±1% FS/7d

Response time: T90≤60s(Fully preheated)

Sensor: Ion current humidity sensor

Relay contact capacity: 24V DC,0.2A

Power supply: 220V AC±10%,50/60Hz

Instrument power consumption: less than 30VA

Communication (optional): RS232/RS485

Sensor life: more than 2 years (normal use)

Analyzer life: more than 5 years (normal use)

System use ambient temperature: 0~50°C

System use enviroment humidity: less than 90%RH

Probe use ambient temperature: 0~220°C

Measurement method: ejection type

Meter installation: wall-mounted

System cabinet installation size: L×W=560mm×360mm(hole spacing)

Probe installation: threaded or flanged
