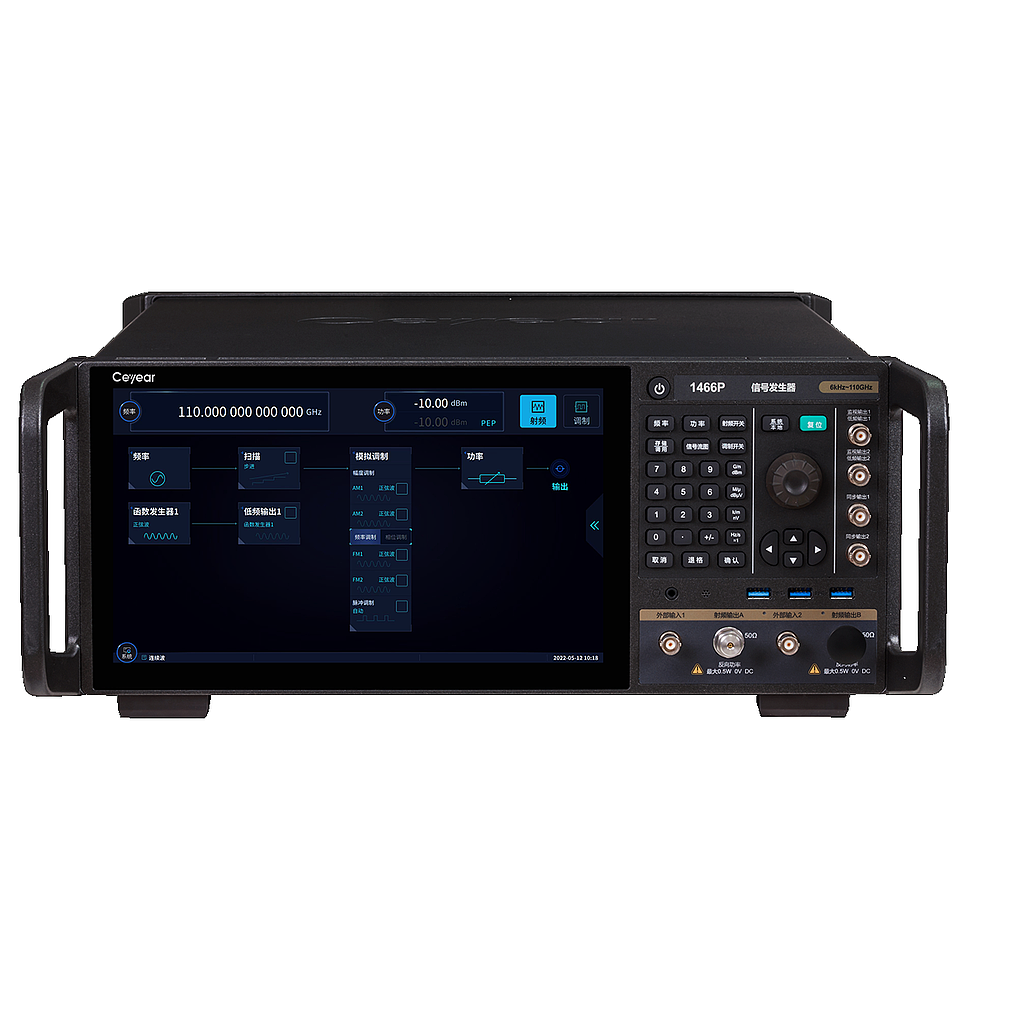

Frequency Range: 6 kHz to 20 GHz,
Frequency Resolution: 0.001 Hz
Frequency Switching Time: <15ms (typ.)
Time Base Aging Rate: ±5×10-10/day(after continuous switch-on for 30 days) (typ.)
Reference Output
• Frequency: 10MHz
• Power: >+4dBm, to 50Ω
Reference Input
• Frequency: 1-100 MHz, 1Hz step
• Power: -5dBm to +10dBm, 50Ω impedance
Sweep Mode: Step sweep, List Sweep and Ramp (Analog) Sweep (option S15) power sweep (option S16)
High Precision Analog Sweep (Option S15)
Max. sweep speed: 4GHz < f : 400MHz/ms
Sweep accuracy: ±0.05% Sweep width (for 100ms, within the maximum width of 100ms as specified)
Minimum Output Power
Standard: -10 dBm (-20 dBm configurable)
Power Resolution: 0.01 dB
Power Temperature Stability: 0.02 dB/ºC (typical)
VSWR
• 100kHz ≤ f ≤ 20GHz: <1.6
• 20GHz < f ≤ 40GHz: <1.8
• 40GHz < f ≤ 67GHz: <2.0
• 67GHz < f ≤ 85GHz: <2.5
• 85GHz< f≤ 110GHz: <3.0
Harmonic Wave (Standard)
• 100kHz ≤ f ≤ 3GHz: < -30dBc
• 3GHz < f ≤ 67GHz: < -55dBc
• 67GHz ＜ f ≤ 110GHz: < -40dBc
(at +10dBm or Max. specified output power, whichever is lower)
Sub-harmonic Wave (Standard)
• 6kHz ≤ f ≤ 3GHz: < -80dBc
• 20GHz ＜ f ≤ 40GHz: < -60dBc
• 40GHz ＜ f ≤ 110GHz: < -50dBc
(at +10dBm or Max. specified output power, whichever is lower)
Non-harmonic Wave (Option H04-1 Ultra Low Phase Noise)
• 6kHz ≤ f ≤ 250MHz: < -58dBc
• 250MHz < f ≤ 4GHz: < -70dBc
• 4GHz ＜ f ≤ 10GHz: < -70dBc
• 10GHz ＜ f ≤ 20GHz: < -64dBc
• 20GHz ＜ f ≤ 40GHz: < -58dBc
• 40GHz ＜ f ≤ 67GHz: < -52dBc
• 67GHz ＜ f ≤ 110GHz: < -48dBc
(At 0dBm, beyond 3kHz offset)
Non-harmonic Wave (Option H04-2 Ultra Low Phase Noise)
• 6kHz ≤ f ≤ 250MHz: < -68dBc
• 250MHz < f ≤ 4GHz: < -80dBc
• 4GHz ＜ f ≤ 10GHz: < -80dBc
• 10GHz ＜ f ≤ 20GHz: < -74dBc
• 20GHz ＜ f ≤ 40GHz: < -68dBc
• 40GHz ＜ f ≤ 67GHz: < -62dBc
• 67GHz ＜ f ≤ 110GHz: < -58dBc
(At 0dBm, beyond 3kHz offset)
RF Output Port: 3.5mm (male), impedance 50Ω
Power Consumption: < 600W
Dimension (max.)
• 426 (W) × 177 (H) × 500 (D) mm (excluding the handle)
• 475 (W) × 193 (H) × 610 (D) mm (including the handle)
Weight: < 35kg (the weight varies with the model and option configuration)
Power Supply: 100-120VAC, 50-60Hz; or 200-240VAC, 50-60Hz (self-adaptive)
See more detail information in the Datasheet
