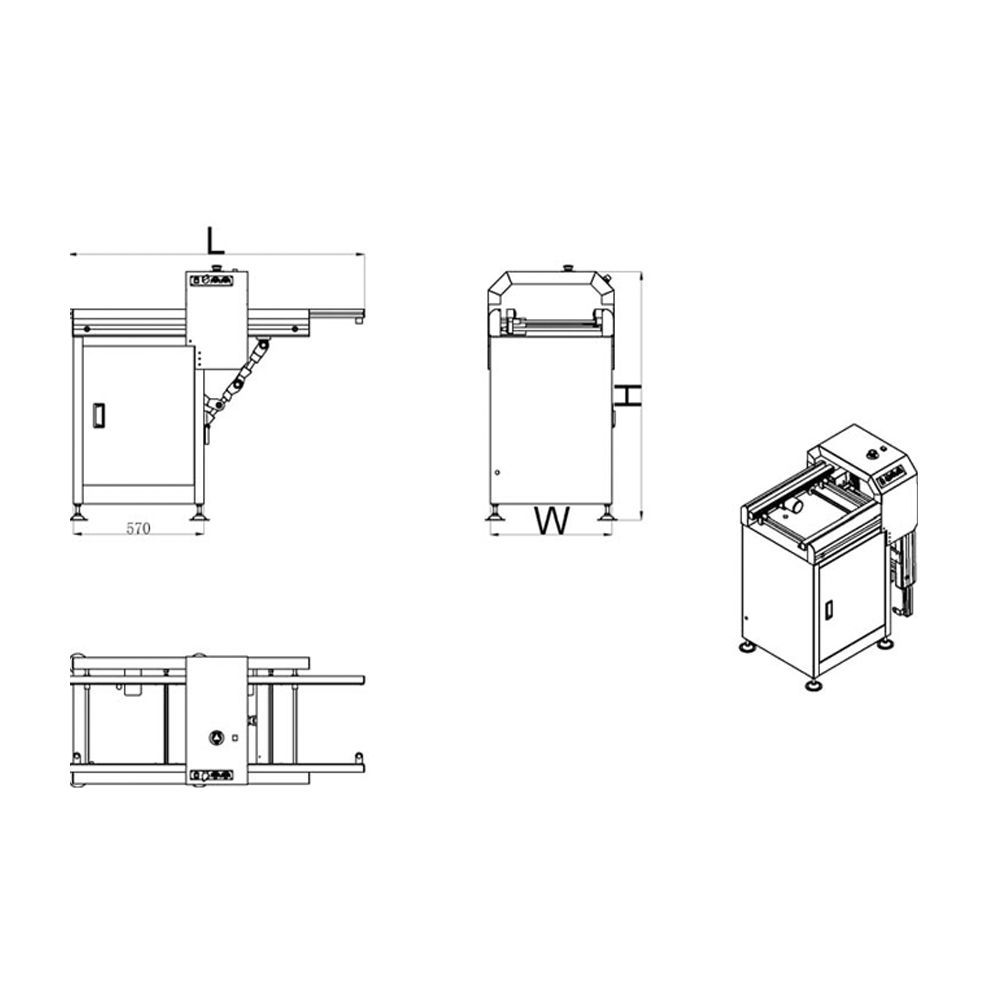

Dimension(L*W*H): 1300*570*1050mm
PCB size（L*W): 50*50-445*400mm
Quantity of rail: Single rail
Belt type: 4mm flat belt
Load bearing: 2kg/PCB
Conveyor speed: 0.5-20m/min or specify
Transport height: 900±20mm(or custimzie)
Power supply: 220V ; single phase
Power: Max 100VA
Air prssure: 4-6bar
Air consumption: 48L/min max
Transport direction: L-R or R-L
CE: Yes
PLC: No
SMEMA: No
Weight: 180kg

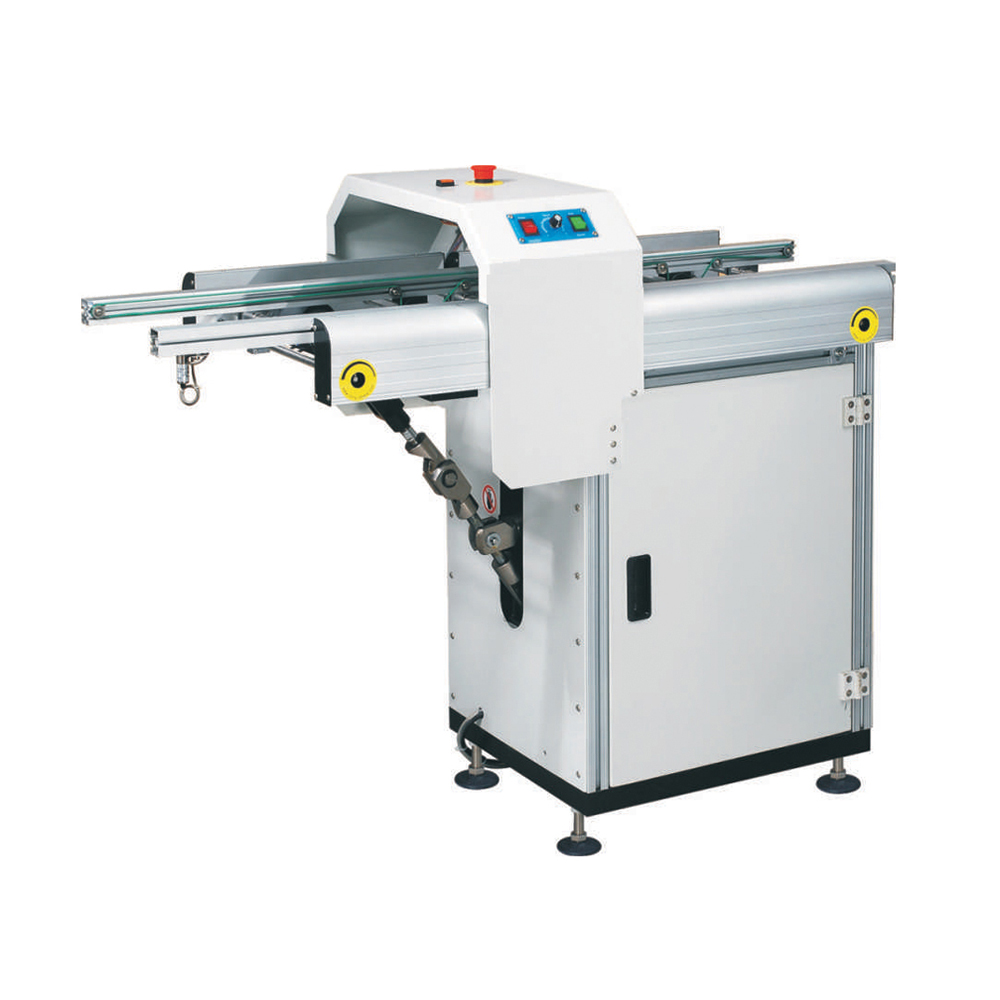

The Lowering Gate Conveyor is used when a passage way is required in a production line.
Features
1.Lowering and lifting of gate conveyor (controlled by push botton);
2.650mm passage way or specify;
3.Parallel and smooth width adjustment(leadscrew);
4.Safety sensor installed to enhance safety;
5.With SMEMA signal.
