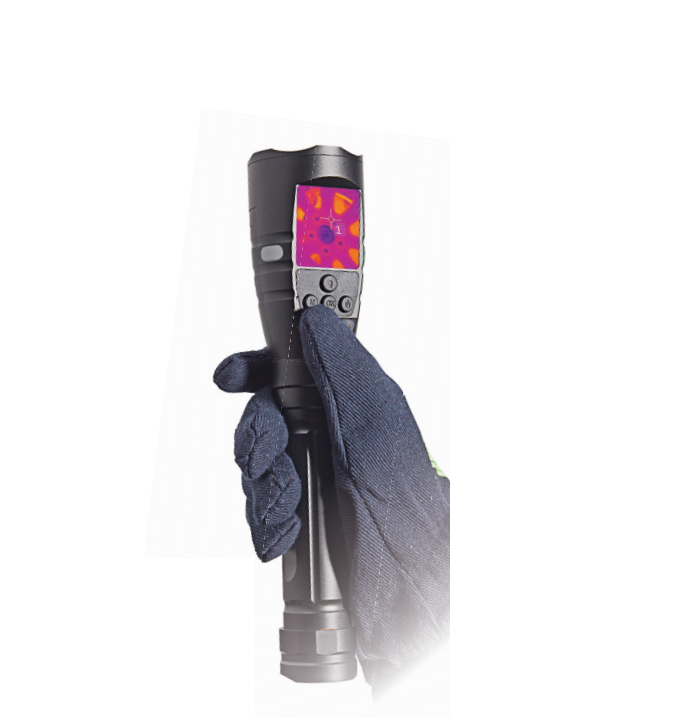

CEM T-60 Flashlight With Thermal Imager (-20°C ~330°C, 205x156)

Imaging and optical data

IR resolution: 205x156 focal plane array (FPA), uncooled microbolometer

Field of View (FOV): 36°x27°

Spatial resolution: 3mrad (IFOV)

Thermal sensitivity/NETD: < 0.05°C @ +30°C (+86°F) / 50 mK

Image frequency: 9Hz

Focus: Focus free

Image presentation

Display: 2.4" 320x240 TFT

Image modes: IR image, visual image, picture in picture, AUF

Color palettes: GRAY/GRAY IRON/IRON/RAINBOW/FEATHER

Measurement

Object temperature range: -20°C to 330°C (-4°F to 302°F)

Accuracy: ±5°C (±3.6°F) or ±3% of reading

Storage of videos/images

Storage media: 4Gbytes eMMC

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes

Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures

Storage mode: IR/visual images; simultaneous storage of IR and visual images

Digital camera

Built-in visible light digital camera: 2M Pixels

Data communication interfaces

USB interfaces: USB-micro, data transform between camera and PC, remote control, live video

Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control, live video

Size(HxWxD): 75 x75 x 258mm

Weight: 547g

Accessories:

Infrared camera with lens, CVBS cable, Gift box.

Datasheet
