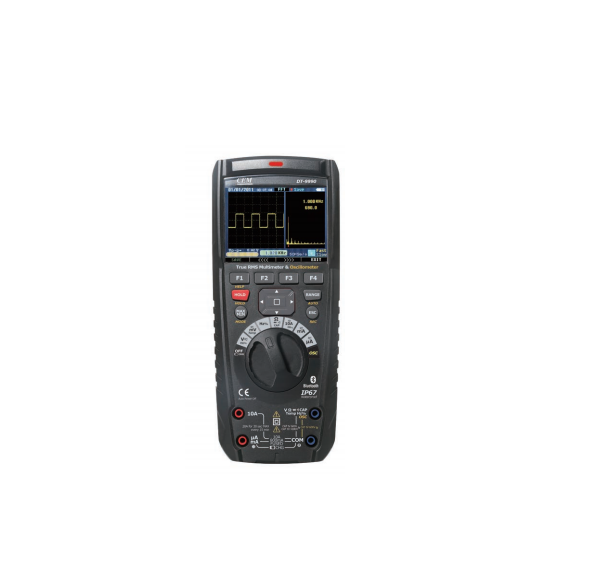

Oscilloscope Functions
Display Size: 3.5" color LCD 320 x 240 pixels
Bandwidth: 10MHz
Real time sample rate: 50MS/s
Risetime: 10ns
Channel: 1
Vertical Sensitivity: 50mV/div ~ 200V/div
Vertical Resolution: 8bits
Trigger Mode: Free Run, falling edge, rising edge
Input Impedance: 1MΩ/15pF
Max Input Volatage: 1000Vp-p
Cursor Measurement: Voltage and time/ Frequency
True RMS Multimeter Functions
Voltage DC: 1000V; 1μV; ±(0.025% + 5)
Voltage AC: 1000V; 1μV; ±(0.3% +25)
Current DC: 10A; 0.01μA; ±(0.15% + 2)
Current AC: 10A; 0.01μA; ±(0.6% + 5)
Temperature: -50°C ~ 1000°C; 0.1°C; ±(1.0% + 2.5°C)
Resistance: 50MΩ; 0.01Ω; ±(0.05% + 2)
Capacitance: 10mF; 0.001nF; ±(2.0%+40)
Frequency: 10MHz; 0.01Hz; ±(0.01%+10)
Diode and Continuity: Yes
Bluetooth Interface: Smartphone/PC
Power Supply: 6 hours Li-ion rechargeable battery; AC Adaptor
Size(HxWxD):220mm x 91mm x 56mm
Weight:630g
Accessories:
Test leads, Li-ion battery, Type K temperature probe, Bluetooth and Software, gift box with carrying case
