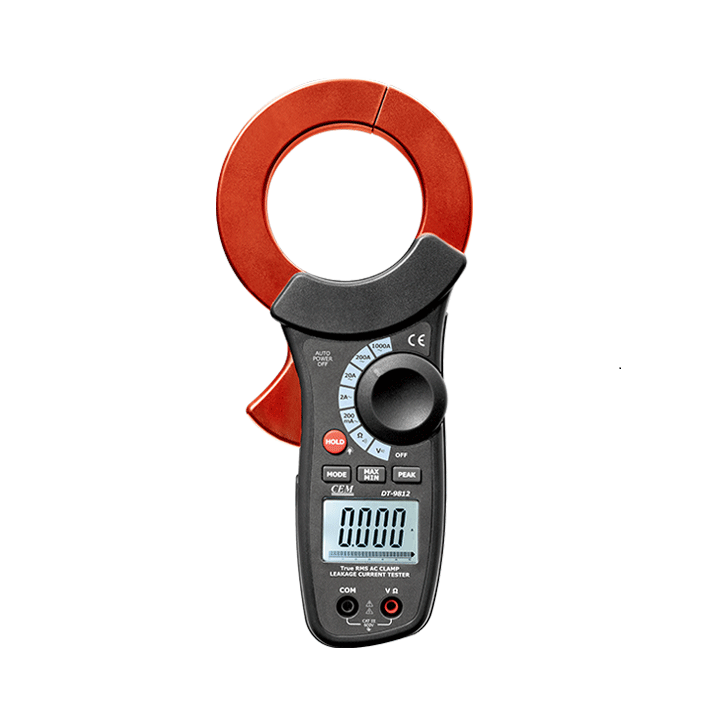

CEM DT-9812 AC Leakage Current Tester (AC-1000A, AC/DC-600V, True RMS)

Function: Range - Range - Accuracy(50/60Hz) - Accuracy(40~1kHz)

AC Current

200mA ; 0.1mA ; ±(1.5%+10d) ; ±(3.0%+10d)

2A ; 1mA ; ±(1.5%+10d) ; ±(3.0%+10d)

20A ; 10mA ; ±(1.5%+10d) ; ±(3.0%+10d)

200A ; 100mA ; ±(2.0%+10d) ; ±(3.5%+10d)

1000A ; 1A ; ±(5.5%+10d) ; ±(10%+10d)

AC Voltage: 600V ; 0.1V ; ±(1.0%+5d) ;  

DC Voltage: 600V ; 0.1V ; ±(1.0%+5d) ;  

Resistance: 600Ω ; 0.1Ω ; ±(1.0%+5d) ;  

Continuity Test: Threshold 40Ω, Continuity Beeper 2KHz

Conductor size: Φ68mm max.

Frequency response: 40Hz-1kHz

Effect of external stray magnetic field Φ15mm 100A: 10mA AC max.

Applicable standards: IEC 61010-1 CAT.Ш 600V IEC 61010-2-032 

Size (H x W x D): 250mm x 113mm x 45mm

Weight: 490g

Accessories: Gift box with carrying case and 9V battery, Test leads.
