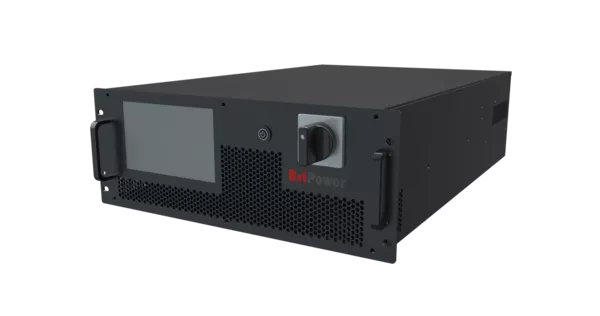

Bripower ZGX 15 AC/DC Power Source & Load

AC input

Provide pre-charge circuit. Effectively restrain the impulse current when power on

Voltage: 380VLL±10%/3P+PE, 400VLL±10%/3P+PE, 220VLN±10%/1P+N+PE

Frequency: 47-63Hz

Efficiency: ≥85%

Power Factor @ Rated Power: >0.99

THDi: <1%

Output

Output Modes: AC, DC, or AC+DC

Power Level: 15KW

Load Regulation: 0.1%FS

Line Regulation: 0.1%

AC Output

Voltage Range (L-N): Max 300V L-N @ DC~1000Hz; Max 450V L-N @ DC~70Hz

Current Range: 30A/ph (3-phase) or 90A (single phase)

Frequency Range: 0.01 ~ 1000Hz

Phase Angle Range: Phase B/C relative to phase A, 0.0~360.0°

THD:

<0.5%FS @DC~400Hz (measured at 250VL-N, Resistive Load)

<1%FS @400~1000Hz (measured at 250VL-N, Resistive Load)

Harmonic waveform Generation: Up to 100th

Voltage Slew Rate: 3V/us

Current Slew Rate: 0.5A/us

Small signal bandwidth: 10kHz

Power Accuracy: 0.2%FS

Voltage Accuracy: 0.1%FS

Current Accuracy: 0.2%FS

Frequency Accuracy: 0.01%FS+0.01Hz

Phase Angle Accuracy: <1° (@50Hz)

Power Resolution: 0.001kW

Voltage Resolution: 0.1V

Current Resolution: 0.01A

Frequency Resolution: 0.01Hz (~100Hz), 0.05Hz (>100Hz)

Phase Angle Resolution: <0.1°

DC Output

Voltage Range: 0-636V

Current Range: 30A/ch (3-channel) or 90A (single channel)

Voltage Accuracy: 0.1%FS

Voltage Resolution: 0.1V

Current Accuracy: 0.1%FS

Current Resolution: 0.01A

Voltage Ripple: 0.1%FS

AC+DC Mode Max Power, Voltage and Current are the same as DC Mode AC

Power Measurement Accuracy: 0.2%FS

AC Voltage Measurement Accuracy: 0.1%FS

AC Current Measurement Accuracy: 0.2%FS

DC Voltage Measurement Accuracy: 0.1%FS

DC Current Measurement Accuracy: 0.1%FS

Frequency Measurement Accuracy: 0.01%+0.01Hz

RLC/RCD Load Simulation

R: Range: 0.1~1000Ω. Resolution: 0.1Ω. Accuracy: ±0.1%FS

L: Range: 0.01~500mH. Resolution: 0.01mH. Accuracy: ±0.1%FS

C: Range: 0.001~50mF. Resolution: 1uF. Accuracy: ±0.1%FS
