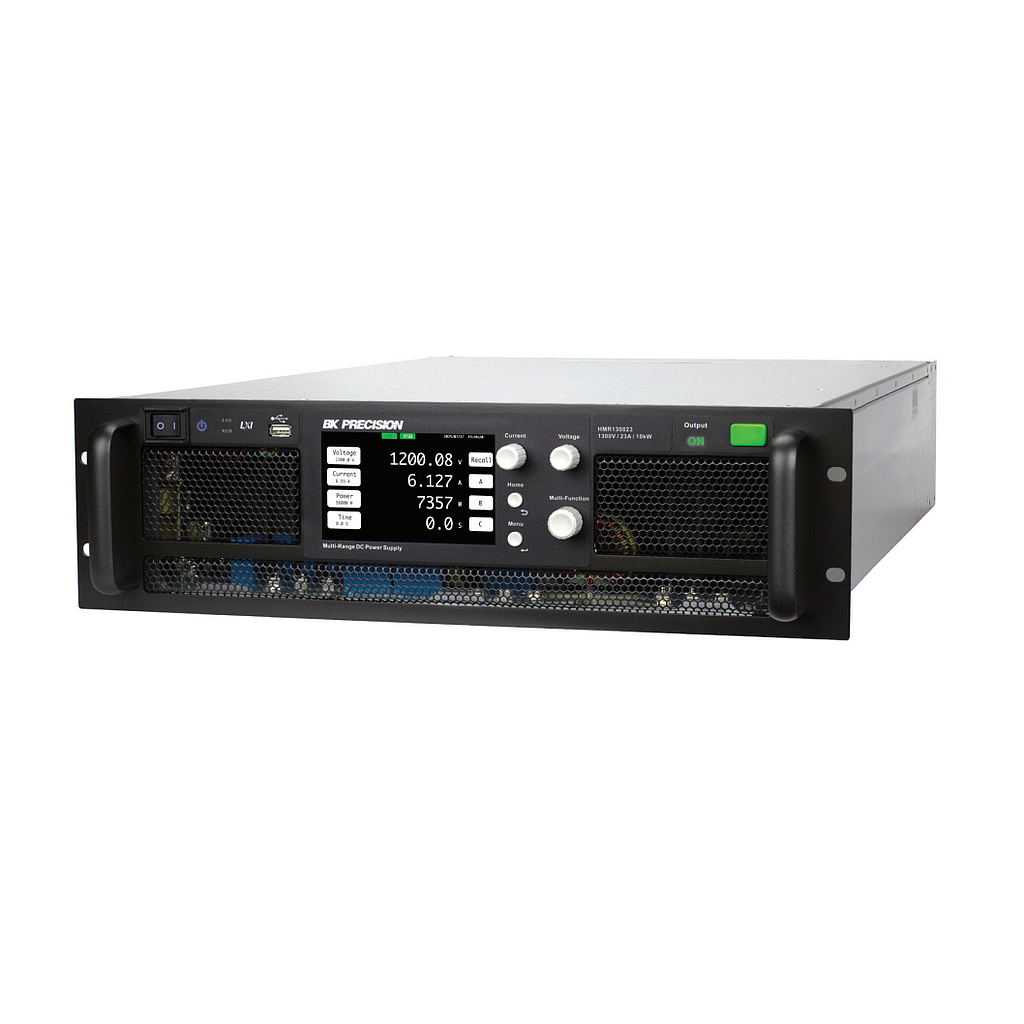

BKPRECISION HMR65046 ATE System DC Power Supplies (10 kW ; 650 V; 46 A)

Output Power : 10 kW

Output Characteristics:

Max Output Voltage :  650 V

Max Output Current : 46 A

Load Regulation:

Voltage : 325 mV

Current : 69 mA

Ripple and Noise (20 Hz to 20 MHz) : < 720 mVpp; < 180 mVrms

Rise Time at Full Load : < 30 ms

Fall Time No Load : < 6 s

Programming Accuracy: ± 650 mV

Multi-range (autorange)  : ✔

Features:

Front Panel USB : ✔

Touchscreen Display : ✔

CV / CC / CP Priority : ✔

Internal Resistance Simulation : ✔

Parallel operation : 100 units max

Protection : OVP / OCP / OPP / OTP / key-lock / Optional reverse voltage protection unit

General:

Form Factor:  3U

Command Response Times : 3 ms

I/O Interfaces : Standard: LAN (LXI) and USB. Optional: User-installable GPIB and Analog

AC Input : Wide range (nominal): 200 to 415 VAC
