Manuafacturer: BK PRECISION

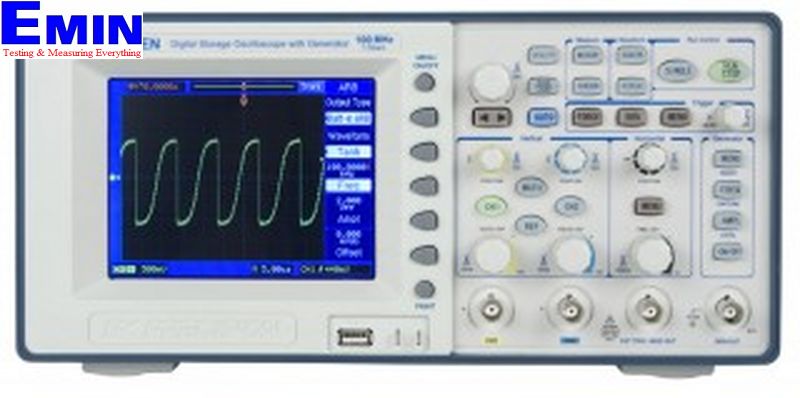

Model : 2542B-GEN
Original: China
Warranty : 12 month
Bandwidth: 100 MHz
Built-In AWG: 40 MHz
Real Time Sampling Rate: Single Channel: 1 GSa/s, Dual Channel: 500 MSa/s
Channels: 2
Max Memory Depth: 1.2 Mpts*
Vertical Resolution: 8 bit
Vertical Sensitivity: 2 mV/div -10 V/div (1-2-5 order)
Horizontal Scan Range: 2 ns/div to 50 s/div
Maximum Input Voltage: 400 V (DC+AC pk-pk, 1 MΩ, X10), CAT I
I/O Interface:USB, RS-232, LAN
Trigger: Edge, Pulse Width, Video*, Slope, Alternating
Math Operation: Add, Subtract, Multiply, FFT
FFT: Rectangular, Hanning, Hamming, Blackman, Flattop
Measure: Max, Min, VPP, High, Low, Amplitude, Average, RMS, Overshoot, Preshoot, Cycle average, Cycle RMS, Frequency, Period, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay, Phase, X at MAX, X at MIN
Display: 5.7 in. Color TFT, 320 x 234 resolution, 24-bit true color
Power Requirements: 100-240 VAC
Dimensions: 320 x 156.5 x 123 m
Weight: 2.81 kg
Supplied Accessories: User manual, two 150 MHz 10:1 passive probes (model PR37A), power cord, USB interface cable, and certificate of calibration, One BNC-to-BNC cable
