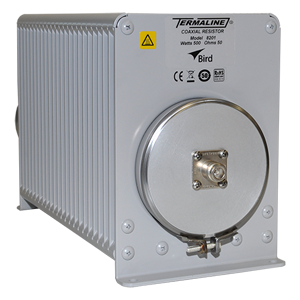

Bird 8201 Oil-Cooled RF Termination

Power Rating 250 W continuous

Frequency Range and VSWR : DC to 1 GHz @ 1.1 max.

1 GHz to 1.8 GHz @ 1.2 max.

1.8 to 2.5 GHz @ 1.3 max.

Temperture Range -40 to +45 °C

Coolant 0.35 gal. (1.3 liters) Silicone Oil

Product Type : Oil-Cooled

Operating Position Horizontal Only

Connectors N (F)

Finish : Gray Powder Coat

Dimensions 9-9/16" x 8-1/2" x 5-15/16" (L x H x W) 243 x 216 x 151 mm

Weight : 10 lbs. (4.5 kg)
