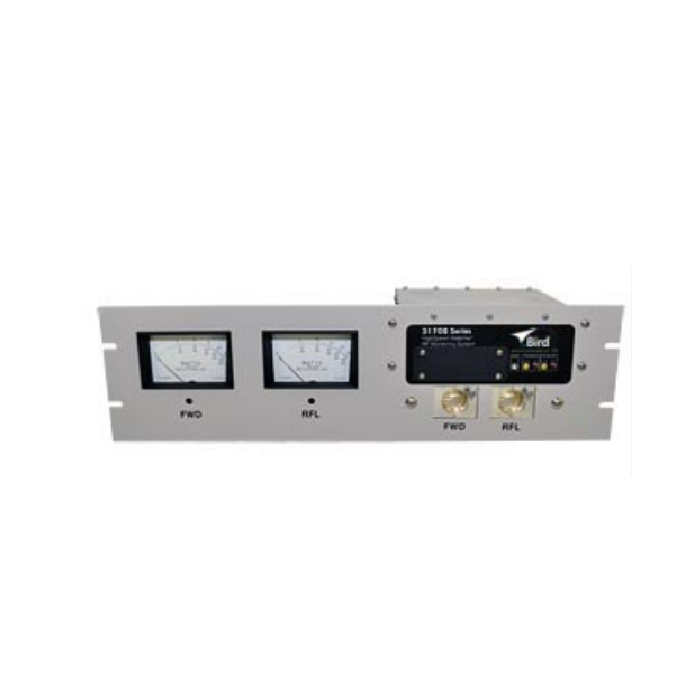

Bird 3170B RF Power Monitor (100 mW ~ 10 kW)

Power Range: 100 mW to 10 kW

Frequency Range: 450 kHz - 2.7 GHz

Insertion VSWR: with N connectors 1.05 max. to 1000 MHz, 1.1 max. to 2700 MHz

Accuracy: ± 5% of full scale

Meter Scales: FWD and RFL 25, 50, 100 W

AC Power: 115/230 V, 50/60 Hz @ 56mA

DC Power: 12.7 to 16.0 VDC @ 400mA max.

Connectors: QC type (Female N)

Finish: Gray Powder Coat

Dimensions(W x H x D):

19" x 5-7/32" x 9-5/16"

483 x 133 x 237 mm

Weight: 7 lbs. (3.2 kg)
