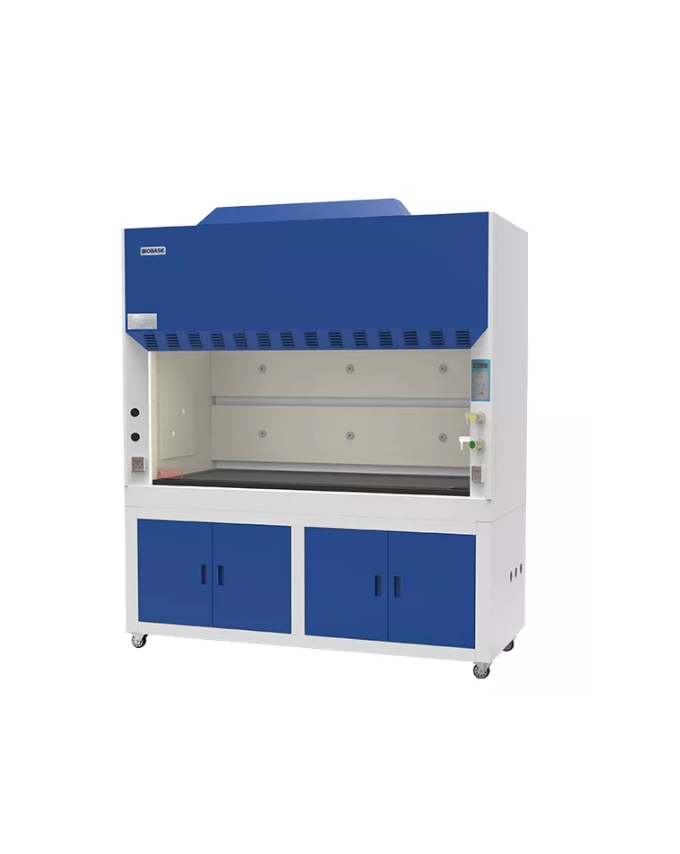

BIOBASE FH1200(A) Fume Hood (0.3 – 0.8 m/s, 730 m³/h)

External Size (W×D×H): 1240 × 800 × 2200 mm

Internal Size (W×D×H): 1020 × 670 × 730 mm

Work Surface Height: 850 mm

Max Opening: 520 mm

Air Velocity: 0.3 – 0.8 m/s

Exhaust Air Volume: 730 m³/h

Noise: ≤ 68 dB

Exhaust Duct: PVC, standard length 5 meters, diameter Φ300 mm

LED Lamp: 12W × 1

UV Lamp: Wavelength 253.7 nm, highly efficient for decontamination

Blower: Built-in centrifugal blower, speed adjustable

Front Window: 5 mm toughened glass; electric control; height adjustable

Power Supply: AC 220V ±10%, 50/60Hz; 110V ±10%, 60Hz

Power Consumption: 400 W

Material:

Exterior: Cold-rolled steel with anti-bacterial powder coating

Interior: Compact laminate board with good acid and alkali resistance

Work Table: Chemical-resistant phenolic resin

Standard Accessories: 2 UV lamps, LED lamp, water tap, gas tap, sink, base cabinet

Total load of 2 waterproof sockets: 500W

5m PVC exhaust duct, 2 pipe straps
