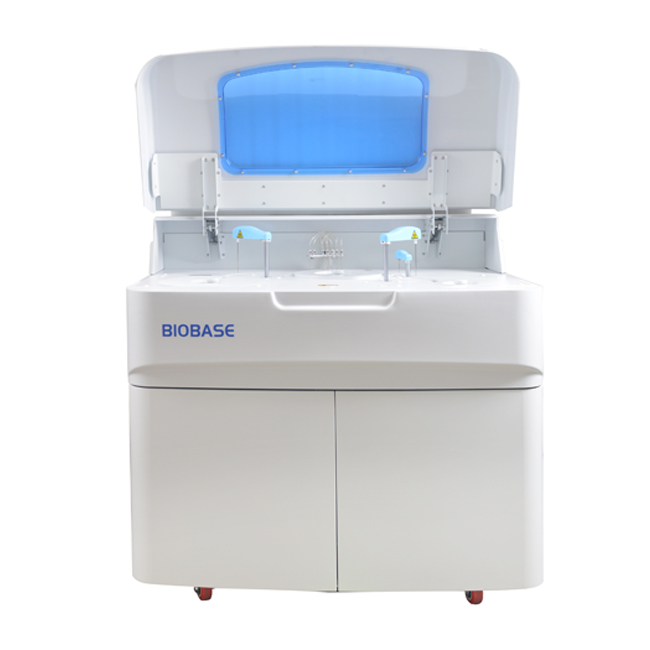

Manufacturer: BIOBASE
Model: BK-400(CRYSTAL)
Origin: China
Warranty: 12 months
Features: Real-time display reagent remaining volume; 45 Reagent positions; 60 Sample positions (90 sample positions optional); 120 Reaction cuvettes (reusable); 400 tests per hour with STAT function; Auto 7-step washing system; One sample probe, one reagent probe, anti-collision function, liquid level detection function; Optional built-in sample & reagent barcode reader
Type: Discrete, Fully automatic
Throughput: 400Tests/Hour
Analysis Method: End-point, Fixed-time, Rate, Turbidimetry
Sample unit
Sample Positions: 60 or 90 sample positions, including calibration, quality control and emergency
Sample Volume: 2~70μl (0.1μl stepping)
Sample Probe: Teflon coating probe, Liquid level sensor, Anti-collision function
Probe cleaning: Automatically wash interior and exterior
Analysis Items: Analyzing maximally 45 items at the same time
Reagent unit
Reagent Position: 45 refrigerated reagent positions
Reagent Volume: 20~350μl (1μl stepping)
Reagent tray cooling: 2℃~8℃cooling for 24 hours
Reaction unit
Temperature Control: 37℃±0.1℃, real-time monitor
Cuvettes: 120 reusable cuvettes (optical path length 6mm)
Mixer probe: After adding reagent and sample, mix immediately
Reagent Probe: Teflon coating probe, Liquid level sensor, Anti-collision function
Washing: Automatic water cleaning and drying system
System Adjustment: System can record the blank value and get more, accurate results by deducting blank base value of each cuvette
Light Source: 12V/30W halogen-tungsten lamp, 2000 hours lifetime
Receiver: 8 precision photo receivers
Wavelength Range: 340,405,450,510,546,578,630,700nm
Linear Range: 0.000~3.000Abs
STAT Function: Emergency samples can be placed in the sample tray at any time
Computer System: Windows 7/8/10, LIS system available
Data Processing: Reaction curve and data display function
Power Supply: AC110/220V±10%, 60/50Hz
Interface: LAN Port
Consumption: 500w
Package Size(W*D*H): 1218*958*1431mm
Net/Gross Weight: 242kg

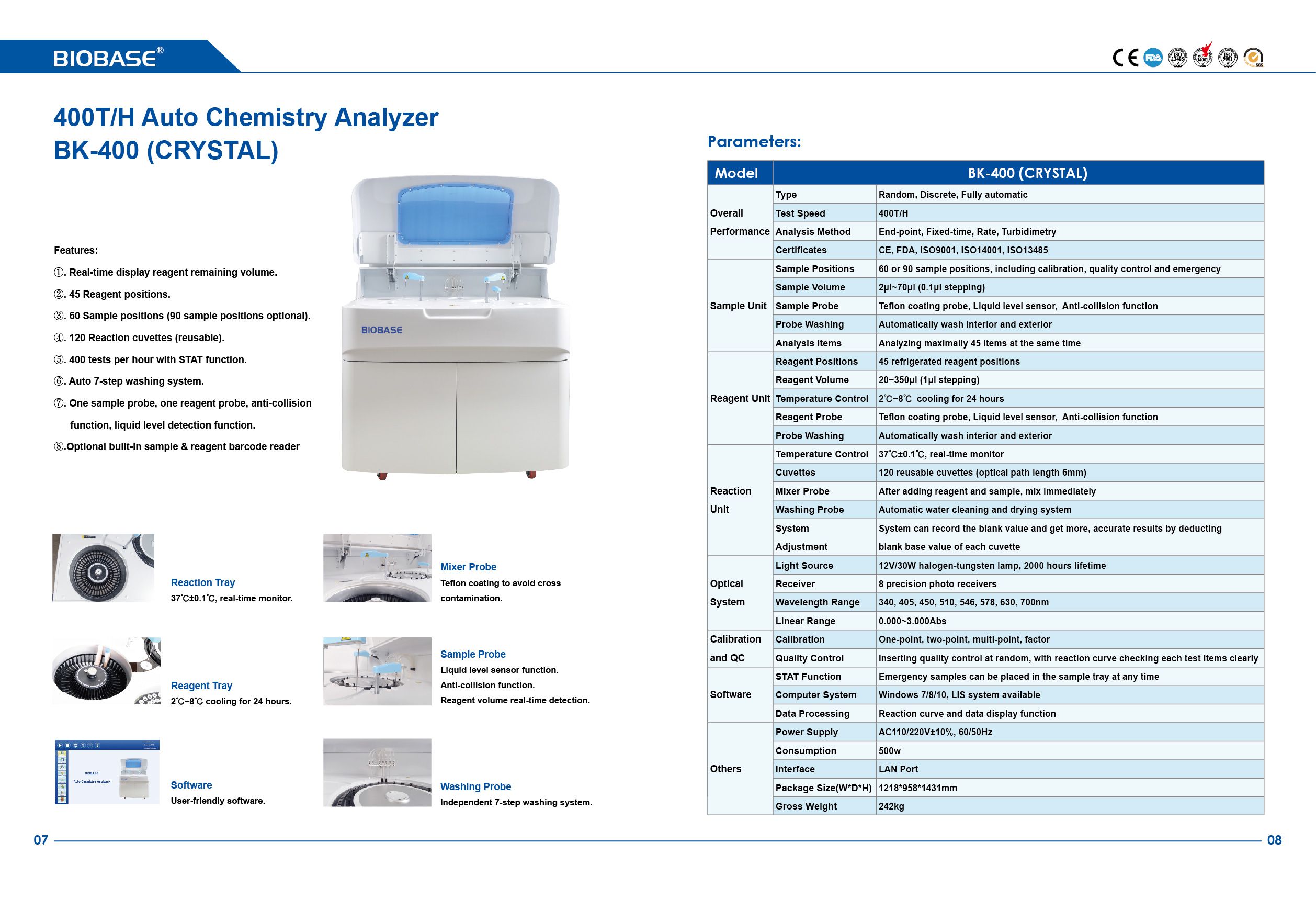

Brochure
