Manufacturer: BIOBASE
Model: BK-200(SAPPHIRE)
Origin: China
Warranty: 12 months
Features: 49 Sample positions; 56 Reagent positions; 120 Reaction cuvettes; 200 tests per hour; Probe anti-collision function.
Type: Random, Bench-top, Discrete, Fully automatic
Throughput: 200Tests/Hour
Analysis Method: End-point, Fixed-time, Rate, Turbidimetry
Sample & Reagent Unit
Sample Positions: 49 sample positions, including calibration, quality control and emergency
Reagent Positions: 56 refrigerated reagent positions
Sample Volume: 2~70μl (0.1μl stepping)
Reagent Volume: R1&R2: 20~350μl (1μl stepping)
Sample& Reagent Probe: Liquid level sensor function, anti-collision function
Probe cleaning: Automatically wash interior and exterior
Reagent tray cooling: 2℃~8℃cooling for 24 hours
Reaction Unit
Reaction Time: 10 minutes
Temperature Control: 37℃±0.1℃, real-time monitor
Cuvettes: 120 reusable cuvettes (optical path length 6mm)
Mixer probe: After adding reagent and sample, mix immediately
Washing: Automatically cuvettes washing
Light Source: 12V/30W halogen-tungsten lamp, 2000 hours lifetime
Receiver: 8 precision photo receivers
Wavelength Range: 340,405,450,510,546,578,630,700nm
Linear Range: 0.000~3.000Abs
STAT Function: Emergency samples can be placed in the sample tray at any time
Computer System: Windows 7/8/10, LIS system available
Data Processing: Reaction curve and data display function
Power Supply: AC110/220V±10%, 60/50Hz
Consumption: 300w
Package Size(W*D*H): 1118*728*1151mm
Gross Weight: 130kg

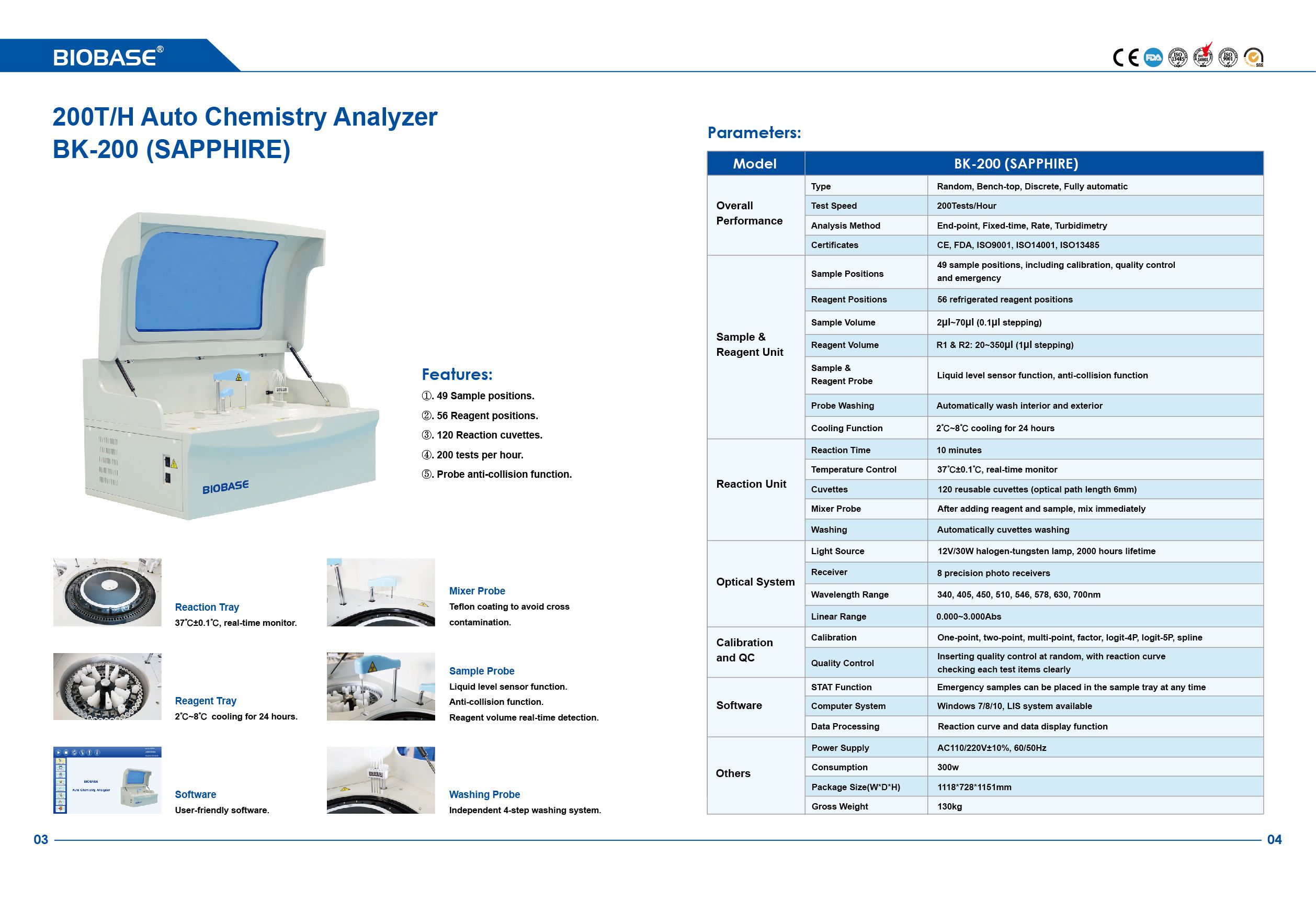

Brochure
